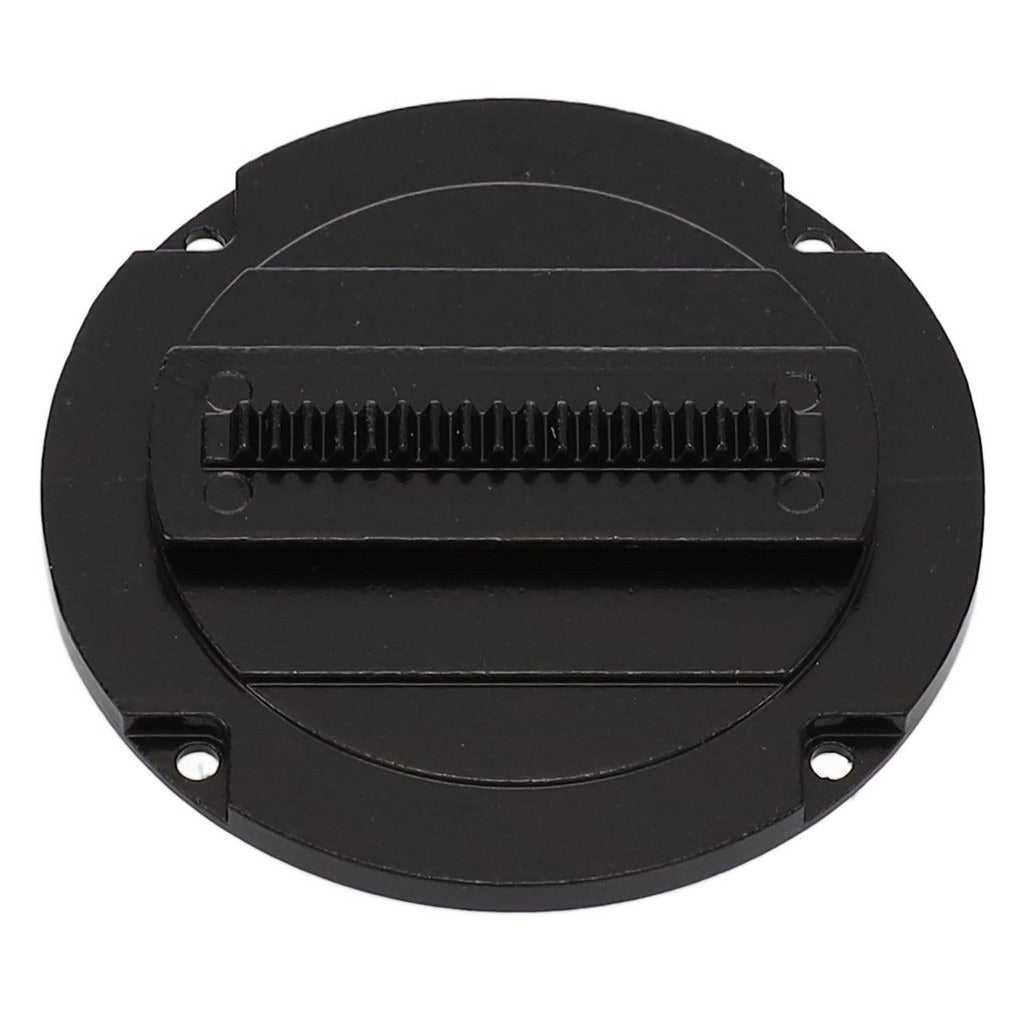

Mitutoyo 129902 Dovetail Back for Dial Indicators

Product Description

The MITUTOYO 129902 is an optional dovetail back accessory designed for use with Digimatic and dial indicators. This replacement back plate provides a dovetail-style mounting interface, allowing the indicator to be secured to compatible indicator holders, stands, and fixtures commonly found in precision measurement setups. It is a direct-fit component intended for metrology professionals, machinists, and quality control technicians who require a reliable mounting solution for their existing indicators. The part ships in a single-unit package and is a lightweight component at 0.05 pounds.

This dovetail back is suited for workshop, production floor, and inspection lab environments where Digimatic or standard dial indicators are mounted to height stands, magnetic bases, or transfer fixtures. Technicians performing dimensional inspection, surface comparison, or runout measurement will find this accessory useful when a replacement or additional back plate is needed for an existing indicator body.

Key Features

• Dovetail-style mounting interface compatible with Digimatic and dial indicator holders
• Optional replacement back plate for maintaining existing indicator setups
• Lightweight construction at 0.05 pounds for minimal added mass on sensitive indicator stands
• Single-unit packaging for straightforward procurement
• Identified under UNSPSC Code 41111600 for precision measuring instrument accessories

Compatibility

Designed for use with Digimatic and dial indicators. Confirm fitment against the specific indicator model before ordering, as dovetail back configurations may vary across indicator series.

Installation Notes

Installation of this dovetail back should be performed by a qualified metrology technician or machinist familiar with indicator disassembly and reassembly. Ensure the indicator is removed from any active measurement setup before swapping the back plate. Avoid applying excessive force during attachment, as indicator housings are precision components sensitive to distortion. Verify secure seating of the dovetail interface before returning the indicator to service.
