Mitutoyo 129-149 MTI 0-12 Depth Mic 2.1/2 Base .001 Grads

Product Description

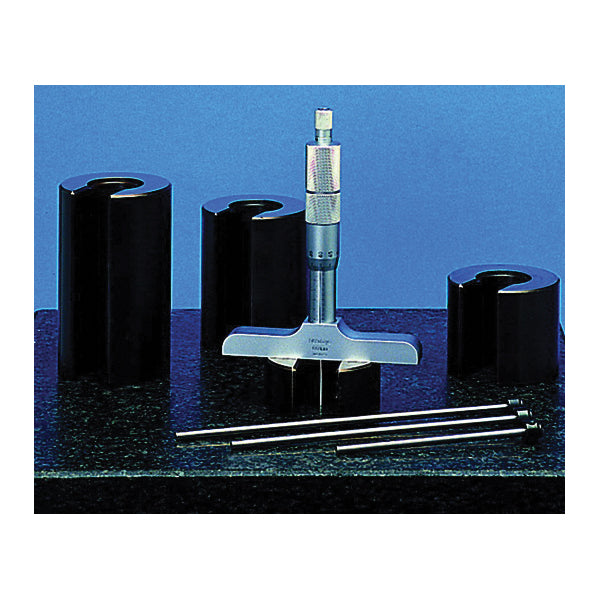

The Mitutoyo 129-149 depth micrometer is designed for precise depth measurements up to twelve inches. This instrument is part of the Mitutoyo brand known for quality and accuracy in measuring tools. The range of this micrometer is zero to twelve inches with a graduation of 0.001 inches.

• Accuracy of +/- 0.00012 inches
• Flat anvil and spindle ensure reliable measurements

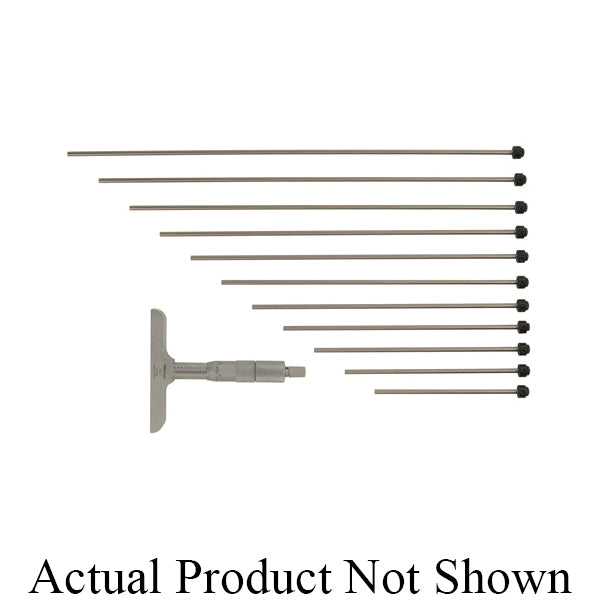

• Interchangeable rods allow for varying measurement depths

Product Highlights

The depth micrometer features a ratchet thimble for consistent measuring pressure. The robust design is ideal for industrial applications.

Product Information

Standard Information

• Brand: Mitutoyo
• Part Number: MTI-129-149

Technical Specifications

• Range: 0 to 12 inches
• Accuracy: +/- 0.00012 inches
• Graduation/Resolution: 0.001 inches
• Base Length: 2.5000 inches
• Anvil Type: Flat
• Spindle Type: Flat
• Thimble Type: Ratchet
• Spindle Diameter: 0.157 inches
• Dimensions: 2.5 inches L x 0.63 inches W
