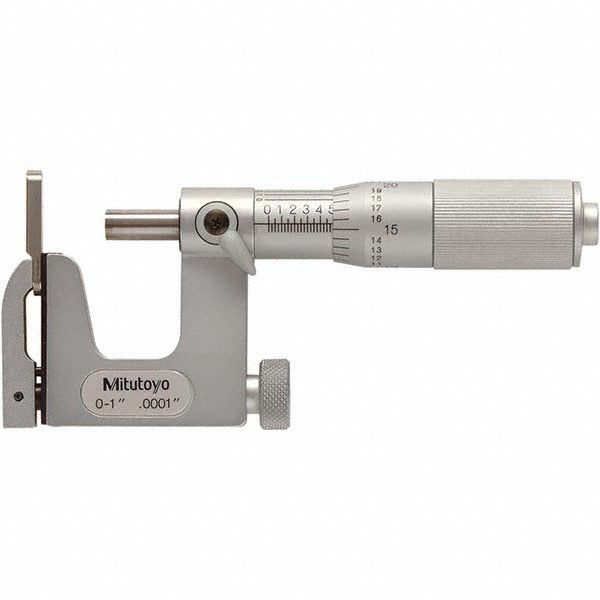

Mitutoyo 117-107CAL Multi-anvil Micrometer 1 Inch

Product Description

The MITUTOYO 117-107CAL is a mechanical multi-anvil micrometer designed for precise dimensional measurement in professional metrology, machining, and inspection applications. It features a friction thimble for consistent measuring force and accepts interchangeable anvils, including flat and rod types, allowing a single tool to cover multiple measurement tasks. The instrument delivers an accuracy of 0.0002 inches and a resolution of 0.0001 inches, making it suitable for tight-tolerance work. It ships calibrated with TUV and NIST traceability certification included, satisfying quality system documentation requirements in ISO and AS9100 environments.

This micrometer is used in machine shops, manufacturing facilities, and quality control labs where versatile, accurate outside measurement is required. The interchangeable anvil system makes it well suited for tasks that involve measuring across varied workpiece geometries, such as flat surfaces and cylindrical features. A satin chrome finish reduces glare under shop lighting. The IP65 ingress protection rating allows use in environments with coolant mist or light fluid exposure, common in production machining settings. The included plastic case provides organized storage and transport of the tool and its anvil set.

Key Features

• Interchangeable flat and rod anvils expand measurement versatility from a single micrometer body
• Friction thimble ensures repeatable, consistent measuring force across users
• Accuracy of 0.0002 inches with resolution of 0.0001 inches for high-precision work
• IP65-rated for resistance to dust and coolant splash in shop environments
• Ships calibrated with TUV Certified and NIST traceable documentation included
• Satin chrome finish reduces reflective glare during use

Compatibility

Designed as an OEM-style precision measuring instrument compatible with standard interchangeable anvil micrometer accessories for tools with up to 1 inch maximum measurement range.

Installation Notes

This instrument is used by machinists, quality control technicians, and metrologists and requires no installation in the traditional sense. Store the micrometer in the included plastic case when not in use to protect the measuring surfaces and anvils. Allow the tool to thermally stabilize at ambient temperature before taking measurements, particularly when moving from a cold storage or shipping environment to a warm shop floor. Calibration should be verified at regular intervals per your facility quality plan, and the included traceability certificate should be retained with inspection records.
