Mitutoyo 117-107 MTI 0-1 UNI-MIKE .0001 Grads W/Flat And Rod Anvils

Product Description

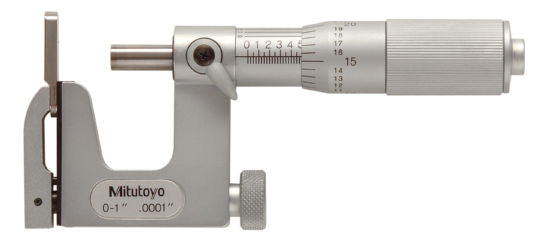

The Mitutoyo 117-107 is a precise micrometer used for measuring small dimensions. This instrument features a range of zero to one inch and offers an accuracy of plus or minus zero point zero zero zero two inches. It comes equipped with flat and rod anvils to enhance measuring versatility.

• Range: Zero to one inch
• Graduation: Zero point zero zero one inch
• Material: Carbide measuring face

Product Highlights

This micrometer is suitable for various applications, including tubing thickness measurement and small part dimensions. The friction thimble allows for smooth operation, and the durable plastic case provides protection when not in use.

Product Information

Standard Information

• Brand: Mitutoyo
• MPN: 117-107
• Accuracy: +/-0.0002 inch
• Measuring Face Material: Carbide
• Thimble Type: Friction
• Type of Reading: Vernier Scale
• Case: Plastic

Technical Specifications

• Measuring Range: 0 to 1 inch
• Graduation/Resolution: 0.0001 inch
• Spindle Diameter: 6.35 mm
• Series: 117
