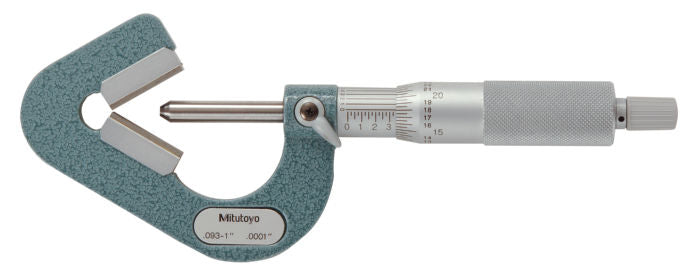

Mitutoyo 114-202 MTI .093-1 V-Anvil Micrometer 0.09 to 1 in Graduations 0.0001 in

Product Description

The Mitutoyo 114-202 is a V-Anvil Micrometer designed for precision measuring. This micrometer covers a measuring range of zero point nine to one inch, with a graduation of zero point zero zero one inches. It is built with a carbide measuring face for durability and enhanced accuracy.

• Measuring range of 0.09 inches to 1 inch
• Graduation of 0.0001 inches for precise readings
• Constructed with a carbide tip for improved durability

Product Highlights

The ratchet stop thimble allows consistent force application during measurements. Ideal for measuring the diameter of cutting tools and similar objects, the micrometer is supplied with a plastic case for storage and protection.

Product Information

Standard Information

• Brand: Mitutoyo
• Part Number: MTI-114-202

Technical Specifications

• Measuring Range: 0.09 to 1 inches
• Accuracy: +/- 0.0002 inches
• Graduation/Resolution: 0.0001 inches
• Measuring Face Material: Carbide
• Thimble Type: Ratchet Stop
• Type of Reading: Vernier Scale
• Case: Plastic
