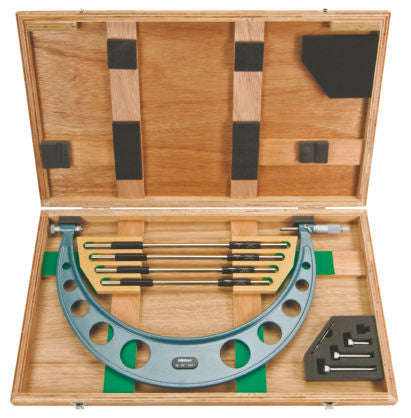

Mitutoyo 104-152 MTI 12-16 Interchangeable Anvil O.D. Micrometer Set

Product Description

The Mitutoyo 104-152 is a micrometer set designed for precise outside diameter measurements ranging from twelve to sixteen inches. It features interchangeable anvils that allow for versatility in measurement applications. This set includes a ratchet stop thimble which provides a consistent measuring force, ensuring accuracy in every use.

• Range: 12 to 16 inches
• Accuracy: +/- 0.00016 + 0.00004 (L / 3) inches
• Graduation: 0.001 inches

Product Highlights

The Mitutoyo micrometer set is ideal for mechanical and engineering applications. It is supplied with a wooden case for easy storage.

Product Information

Standard Information

• Brand: Mitutoyo
• Part #: MTI-104-152

Technical Specifications

• Measuring Range: 12 to 16 inches
• Accuracy: +/- 0.00016 + 0.00004 (L / 3) inches
• Graduation/Resolution: 0.001 inches
• Measuring Face Material: Carbide
• Thimble Type: Ratchet Stop
• Type of Reading: Vernier Scale
• Case: Wooden Case
