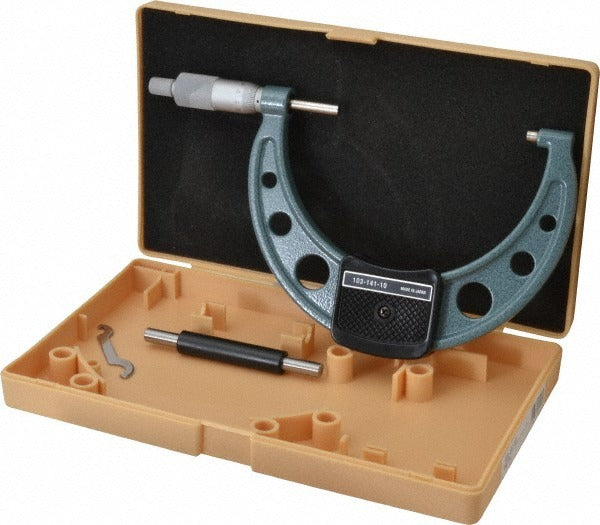

Mitutoyo 103-141-10 Mechanical Outside Micrometer

Product Description

The MITUTOYO 103-141-10 is a mechanical outside micrometer designed for precise linear measurement in workshop and production environments. It reads to a graduation of 0.0100 inches and delivers an accuracy of 0.0001 inches (3.00 micrometers), making it suitable for high-tolerance dimensional inspection. The micrometer features a ratchet stop thimble for consistent measuring force and solid carbide measuring faces on both the anvil and spindle for long-term wear resistance. A satin chrome finish reduces glare and corrosion. Licensed metrology technicians, machinists, and quality control personnel are the primary users of this instrument.

This outside micrometer is used for measuring the outer dimensions of workpieces including shafts, pins, fasteners, and similar components. It is well suited to general workshop inspection tasks as well as light production-floor measurement applications where repeatable results and durable construction are required. The lightweight workshop design reduces hand fatigue during extended use. A standard bar is included to support calibration verification.

Key Features

• Graduation of 0.0100 inches for direct reading without interpolation
• Accuracy of 0.0001 inches (3.00 micrometers) for high-tolerance inspection
• Solid carbide anvil and measuring face for extended wear life
• Ratchet stop thimble ensures consistent and repeatable measuring pressure
• Satin chrome finish reduces light reflection and resists corrosion
• Lightweight workshop design for reduced operator fatigue
• Includes standard bar for calibration reference

Compatibility

Designed as an OEM-style mechanical outside micrometer suitable for general workshop and production measurement applications where 0.0001 inch resolution is required.

Installation Notes

Outside micrometers require no installation but should be handled and stored following standard metrology practices. Before use, clean measuring faces and verify calibration against the included standard bar. Avoid dropping or storing the instrument in contact with other metal tools to preserve face integrity and frame geometry. Calibration verification should be performed by a qualified metrologist or per applicable quality system procedures.
