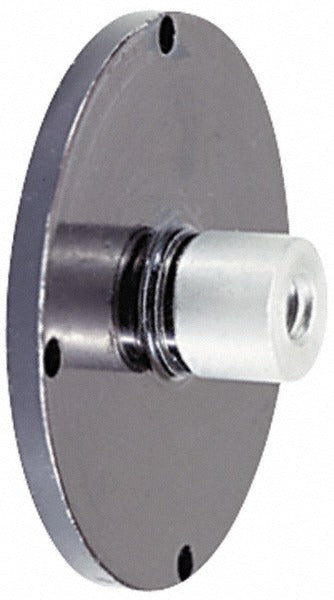

Mitutoyo 101170 Screw Drop Indicator Back Agd 2

Product Description

The MITUTOYO 101170 is a replacement screw drop indicator back designed for use with AGD 2 dial indicators. This component serves as the rear mounting back of the indicator body, providing the interface point for secure installation or repositioning of the indicator in a given setup. It is a direct OEM-style replacement part intended for situations where the original back has been damaged, lost, or must be swapped out to accommodate a special application or mounting configuration. Metrology technicians, machinists, and quality control professionals typically source this part when servicing or adapting dial indicators in precision measurement environments.

This indicator back is suited for use in machine shops, manufacturing facilities, and calibration environments where AGD 2 dial indicators are in active service. It is commonly installed when an existing back is worn or when a specific mounting requirement calls for a replacement component. The back diameter measures 12.7 millimeters, making it compatible with the AGD 2 form factor. It is a single-piece replacement item sold individually.

Key Features

• Replacement screw drop back for AGD 2 dial indicators
• Back diameter of 12.7 millimeters for proper AGD 2 fitment
• Supports special application mounting requirements
• Sold as a single unit for targeted replacement needs
• Lightweight at 0.05 pounds for easy handling during installation

Compatibility

Designed for use with AGD 2 dial indicators where a screw drop indicator back replacement is required for standard service or special application mounting.

Installation Notes

Installation should be performed by a qualified metrology technician or machinist familiar with dial indicator service procedures. Before replacing the indicator back, ensure the indicator is removed from any active measurement setup and is secured to prevent dropping or damage. Use appropriate hand tools sized for the screw fitting; avoid overtightening, which can distort the back or damage the indicator body threads. Verify proper seating and thread engagement before returning the indicator to service.
