Mitutoyo 101039 Flat Drop Indicator Back Agd Group 2

Product Description

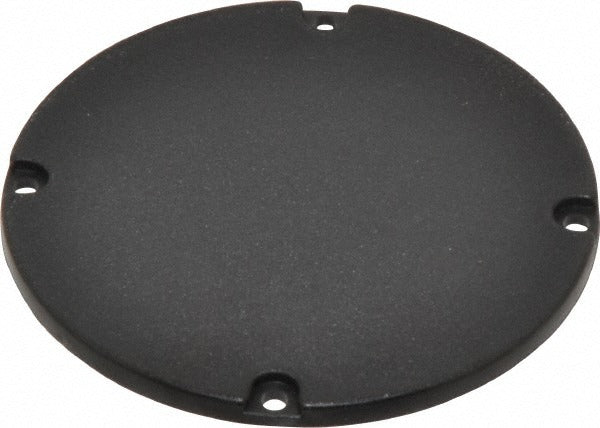

The MITUTOYO 101039 is a flat drop indicator back designed as a replacement component for dial indicators. This part attaches to the rear of the indicator housing and is intended for use when the original back requires replacement due to wear, damage, or a special mounting application. It is a precision measurement accessory used in metrology, quality control, and machine shop environments. Licensed machinists, toolroom technicians, and calibration professionals install this component when reconfiguring or servicing dial indicators for specific fixturing or gauging setups.

This indicator back is compatible with AGD Group 2 dial indicators. It is suited for shop floor and lab environments where standard indicator backs do not meet the requirements of a particular mounting or application scenario. The flat drop style provides a low-profile rear surface that accommodates specific holding fixtures or back-mounting configurations commonly encountered in precision measurement work.

Key Features

• Flat drop style rear profile suited for special mounting applications
• Designed for AGD Group 2 dial indicators
• OEM-style replacement for worn or damaged indicator backs
• Sold individually as a single-unit replacement component

Compatibility

Designed for use with AGD Group 2 dial indicators where the indicator back requires replacement for a special application.

Installation Notes

Installation is performed by calibration technicians or toolroom machinists familiar with dial indicator service. Power-down or lockout procedures are not applicable to this mechanical accessory, but the indicator should be removed from any active gauging fixture before disassembly. Use appropriate small-part hand tools and handle precision indicator components carefully to avoid damage to the housing or measuring mechanism. Follow the indicator manufacturer's service guidelines when replacing indicator backs.
