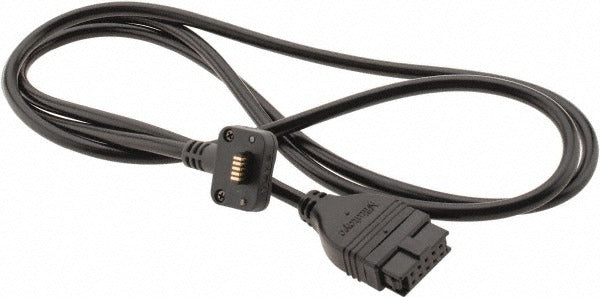

Mitutoyo 05CZA662 Micrometer Spc Cable 40 Inches

Product Description

The MITUTOYO 05CZA662 is an SPC (Statistical Process Control) data cable designed to connect compatible Mitutoyo micrometers to SPC-enabled data collection devices, computers, or measurement systems. At 40 inches (approximately 1.02 meters) in overall length, it provides a practical reach for bench and in-process measurement setups. The cable ships with a data switch included, allowing the operator to trigger data transmission without leaving the measurement position. Metrology technicians, quality control professionals, and precision machining shops use this cable to feed live measurement data directly into SPC software or data loggers, eliminating manual transcription errors.

The 05CZA662 is intended for use with the Mitutoyo 293 Series Coolant Proof Micrometers, a popular line of outside micrometers found in production machining, toolroom, and inspection environments. It is suited for both light industrial and precision laboratory settings where digital measurement output and data traceability are required. The included data switch supports hands-free or one-handed data logging during active measurement cycles, making it practical for high-volume inspection workflows.

Key Features

• Compatible with Mitutoyo 293 Series Coolant Proof Micrometers for direct SPC data output
• Overall length of 40 inches (1.02 meters) provides working reach on most bench setups
• Includes a data switch for operator-triggered measurement transmission
• Enables direct digital data collection, reducing manual entry and transcription errors
• Lightweight at 0.2 pounds for minimal interference during measurement

Compatibility

Designed for use with the Mitutoyo 293 Series Coolant Proof Micrometers. Connects to SPC-capable data collection devices and software via the standard Mitutoyo SPC interface.

Installation Notes

Installation is performed by metrology or quality control technicians familiar with Mitutoyo SPC accessories. Power down or disable active data acquisition software before connecting or disconnecting the cable to avoid data errors or port conflicts. Ensure the micrometer and receiving device ports are clean and free of debris before seating the connectors. Do not force the connector; align carefully before pressing to seat to avoid damaging the SPC port on the micrometer.
