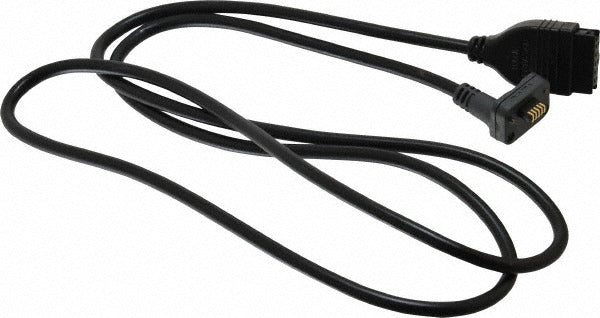

Mitutoyo 05CZA624 Spc Cable for Coolant Proof Calipers

Product Description

The MITUTOYO 05CZA624 is an SPC (Statistical Process Control) data cable designed to connect Mitutoyo Coolant Proof Calipers to a compatible data collection device or interface. At 40 inches (1.00 meter) in overall length, it provides enough reach for most benchtop and production-line measurement setups. The cable transmits real-time measurement data from the caliper to a PC, data logger, or SPC system, supporting quality control workflows in manufacturing and machining environments. Installation requires no special tools and is handled by metrology technicians, quality engineers, or machine operators familiar with SPC data collection equipment.

This cable is intended for use with Mitutoyo Coolant Proof Calipers that feature an SPC output port. It is suited for shop-floor and inspection environments where digital measurement data must be captured directly from the caliper without manual transcription. The 40-inch cable length accommodates typical spacing between a caliper workstation and a data collection unit in both light manufacturing and precision machining settings.

Key Features

• Designed specifically for use with Mitutoyo Coolant Proof Calipers with SPC output
• 40-inch (1.00 meter) overall cable length for flexible workstation reach
• Enables direct digital data transfer to SPC-compatible interfaces and data loggers
• Supports real-time measurement capture for quality control and process documentation
• Lightweight at 0.15 pounds for easy handling in production environments

Compatibility

Designed for use with Mitutoyo Coolant Proof Calipers equipped with an SPC data output port.

Installation Notes

This cable is a plug-in accessory and requires no tools for installation. Ensure the caliper and any connected data collection device are powered off or in standby before connecting or disconnecting the cable to prevent data transmission errors. Verify the connector type on both the caliper and the receiving device matches before purchase. Handle the cable connectors carefully to avoid damage to the SPC port contacts.
