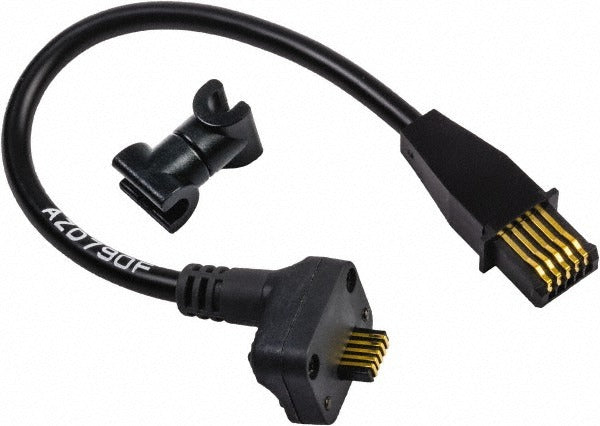

Mitutoyo 02AZD790F Spc Connecting Cable 6 Inches

Product Description

The MITUTOYO 02AZD790F is an SPC (Statistical Process Control) connecting cable designed to link Digimatic measuring instruments to external data collection devices, computers, or SPC data loggers. At 6 inches in length, this short-run cable is suited for bench setups where the instrument and the receiving device are positioned in close proximity. It provides a reliable digital data transfer path from the Digimatic output port, supporting accurate, real-time measurement logging without manual transcription. Metrology technicians, quality control inspectors, and precision measurement professionals typically install and use this accessory in calibration labs and production inspection stations.

This cable is intended for use with Digimatic Calipers and Digimatic Height Gages. Its compact 6-inch length makes it a practical choice for tight workstation configurations where cable management is a concern. It is commonly used in QC environments where Digimatic instruments feed measurement data directly into SPC software or a dedicated data collector, streamlining inspection workflows and reducing recording errors.

Key Features

• 6-inch cable length suited for close-proximity bench and inspection station setups
• Compatible with Digimatic Caliper and Digimatic Height Gage instrument outputs
• Supports SPC data transfer from Digimatic port to external logging devices
• Lightweight construction at 0.05 pounds for minimal strain on instrument connectors
• Sold individually, quantity of one per package

Compatibility

Designed for use with Digimatic Calipers and Digimatic Height Gages equipped with a standard Digimatic SPC output port.

Installation Notes

Installation is performed by metrology technicians or quality control personnel and requires no special tools. Power down or disable the data collection device before connecting or disconnecting the cable to avoid signal errors. Seat the connector fully into the Digimatic output port before initiating data transfer. Handle the cable and connector carefully to avoid damage to the instrument port contacts.
