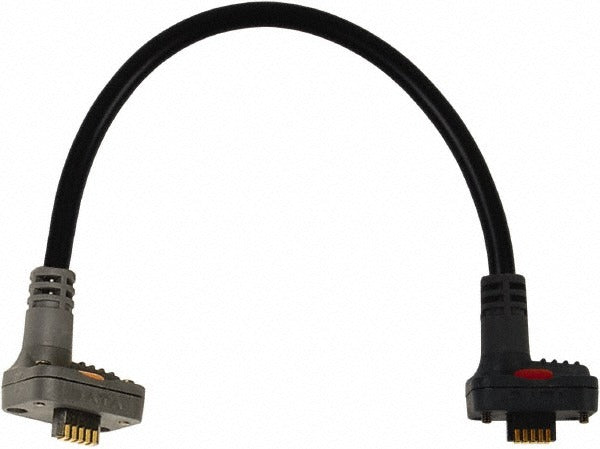

Mitutoyo 02AZD790A Spc Connecting Cable 6 Inches

Product Description

The MITUTOYO 02AZD790A is a 6-inch SPC (Serial Peripheral Component) connecting cable designed to link Digimatic measuring instruments to data collection systems, SPC software, or compatible output devices. At just 0.05 pounds, it is a lightweight interface accessory that carries measurement data from Digimatic-protocol tools to a host device. Metrology technicians, calibration lab staff, and precision measurement professionals use this cable to integrate handheld measuring tools into quality control and statistical process control workflows. The 6-inch length suits bench-top setups where the instrument and data receiver are in close proximity.

This cable is intended for use with Digimatic Calipers and Digimatic Depth Gages. It is well suited for inspection stations, manufacturing QC benches, and calibration environments where direct digital output is required. The short 6-inch cable length keeps the workspace organized and minimizes signal path between the instrument and the data logger or interface unit.

Key Features

• 6-inch cable length designed for compact bench-top instrument setups
• Compatible with Digimatic Calipers and Digimatic Depth Gages
• Carries SPC digital output data from instrument to host device or software
• Lightweight construction at 0.05 pounds for minimal instrument handling impact
• Sold individually as a single-unit accessory

Compatibility

Designed for use with Digimatic Calipers and Digimatic Depth Gages that support SPC data output.

Installation Notes

Metrology technicians and QC professionals typically install this cable. Before connecting or disconnecting, power down the data collection device or interface unit to avoid signal errors. Ensure the Digimatic instrument connector and host port are free of debris before seating the cable. Do not force the connector, as Digimatic ports are keyed and should seat without excessive pressure.
