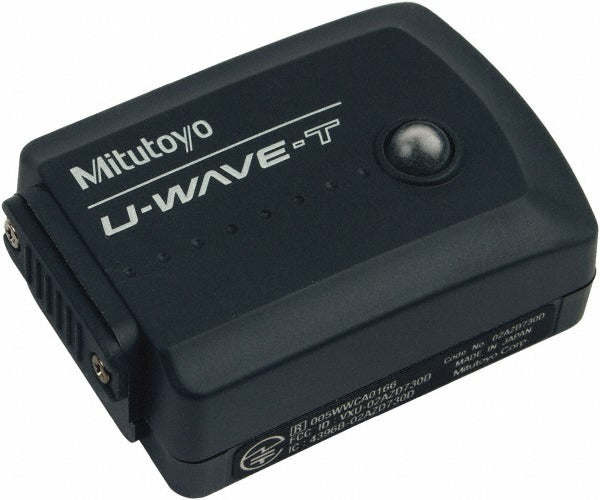

Mitutoyo 02AZD730G Spc Transmitter Digimatic Calipers

Product Description

The MITUTOYO 02AZD730G is an SPC (Statistical Process Control) transmitter designed to interface Digimatic and non-coolant proof calipers with data collection systems. It captures measurement output from the caliper and transmits it to a compatible SPC data logger, computer, or statistical software for quality control and inspection workflows. The transmitter is a lightweight accessory at 0.2 pounds, making it practical for bench-top and in-process gauging stations. Metrology technicians, quality inspectors, and precision measurement professionals install this unit where documented measurement data is required for process verification or compliance.

This transmitter is suited for use in manufacturing environments, inspection labs, and quality control stations where Digimatic calipers are already in service. It supports integration into SPC data collection systems, enabling direct digital data transfer without manual entry. The accessory is compact at 3.8 inches in length, 2.8 inches in width, and 1.7 inches in height, fitting cleanly into most workstation setups without significant footprint impact.

Key Features

• Interfaces Digimatic and non-coolant proof calipers with SPC data systems
• Enables direct digital measurement output for quality control logging
• Compact form factor: 3.8 x 2.8 x 1.7 inches
• Lightweight at 0.2 pounds for easy bench-top or portable use
• Sold individually — package quantity of 1

Compatibility

Designed for use with Digimatic and non-coolant proof calipers as stated by the manufacturer. Not intended for coolant proof or waterproof caliper variants.

Installation Notes

Installation is typically performed by a quality technician or metrology professional. Ensure the caliper is powered off and the data port is free of debris before connecting the transmitter. Verify that the receiving data collection system or SPC software is configured to accept the correct data format before initiating data transfer. Consult the MITUTOYO interface documentation for proper connection and system setup procedures.
