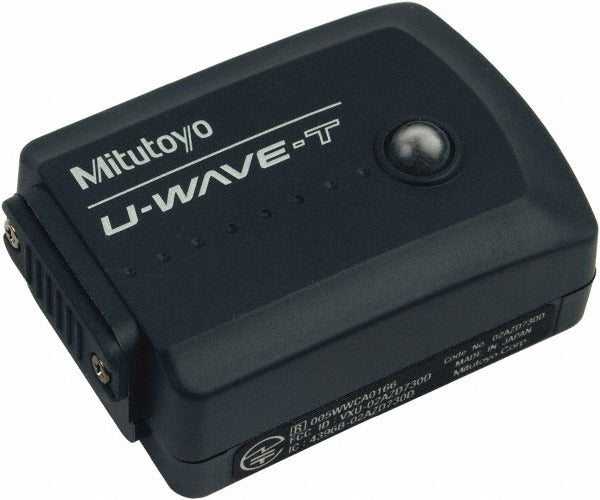

Mitutoyo 02AZD730G-A Spc Cable Transmitter

Product Description

The MITUTOYO 02AZD730G-A is an SPC cable transmitter accessory designed to relay measurement data from compatible Coolant Proof Calipers to an external data collection device or SPC system. It serves as the physical and electronic link between the caliper and a computer, data logger, or statistical process control unit, enabling real-time measurement recording without manual entry. The unit ships individually and is compact enough for bench or machine-side use. Licensed metrology technicians, quality control personnel, and precision machining professionals typically specify this component when building or expanding a shop-floor measurement data system.

This cable transmitter is intended for use in precision measurement environments where Coolant Proof Calipers are part of a data-driven inspection workflow. Common install scenarios include CNC machine cells, quality inspection stations, and manufacturing lines where coolant exposure is a factor and measurements must be logged continuously. It is sold and installed as a single-unit accessory to extend the data output capability of the caliper rather than replace any internal component.

Key Features

• Designed specifically for use with Coolant Proof Calipers to support SPC data output
• Functions as a cable transmitter accessory, enabling direct connection to SPC or data collection hardware
• Compact package dimensions: 3.8 inches long, 2.8 inches wide, 1.7 inches tall
• Lightweight at 0.2 pounds, suited for stationary bench or machine-side deployment
• Single-unit packaging with a minimum order quantity of one

Compatibility

Designed for use with Coolant Proof Calipers that support SPC data output via external cable transmitter connection.

Installation Notes

This accessory is typically connected by a metrology technician or quality engineer familiar with SPC hardware integration. Ensure the caliper is powered down or in a stable measurement state before attaching or detaching the cable transmitter. Verify connector orientation and seating before applying any strain to the cable. Follow the caliper and data collection system manufacturer guidelines for proper cable routing to avoid interference with machine movement or coolant flow.
