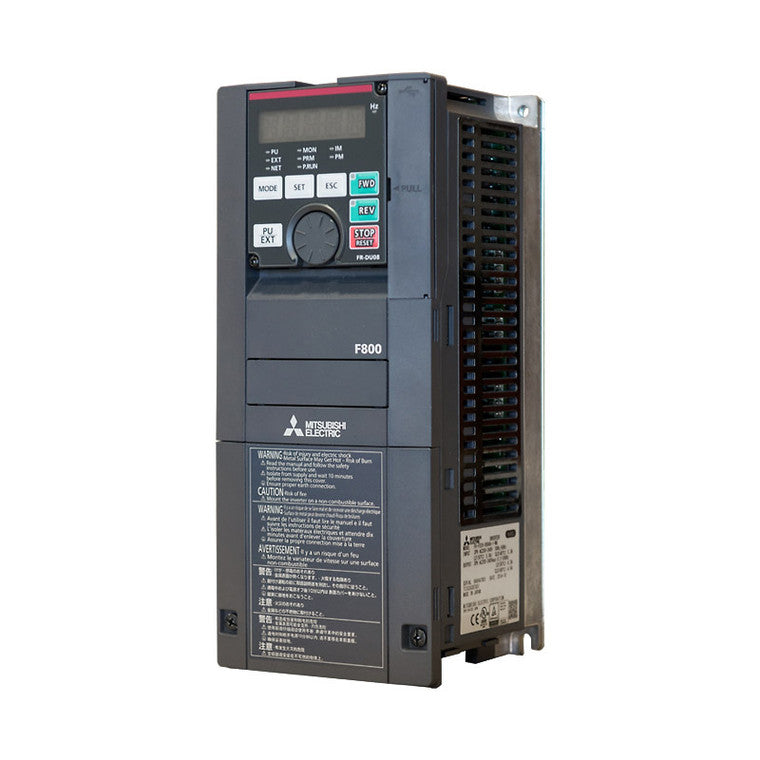

Mitsubishi Vfd FR-F820-01250-3-N6 Variable Frequency Drive 40HP

Product Description

The MITSUBISHI VFD FR-F820-01250-3-N6 is a variable frequency drive designed for energy-saving pump and fan control, suitable for industrial and HVAC systems. It provides an economical solution for managing constant torque loads. It features Modbus RTU communication, extended conformal coating, and a CA term (0-20mA).

• Energy-saving prowess
• Suitable for pump and fan control
• Perfectly suited for industrial use or within an integrated HVAC system

Product Highlights

The FR-F800 VFD is designed for energy efficiency and versatile industrial applications.

Product Information

Standard Information

• Brand: MITSUBISHI VFD
• Manufacturer Part Number: FR-F820-01250-3-N6

Technical Specifications

• Primary brand: Mitsubishi Electric
• Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series / family name: FREQROL FR-F800 series
• Network frequency: (output) 0.2-590 Hz
• Functions: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Soft-PWM control: High carrier frequency PWM control
• Advanced magnetic flux vector control: PM motor control
• Maximum and minimum frequency settings: Multi-speed operation
• Acceleration/deceleration pattern: Thermal protection
• DC injection braking: Starting frequency
• JOG operation: Output stop (MRS)
• Stall prevention: Regeneration avoidance
• Increased magnetic excitation deceleration: DC feeding
• Frequency jump: Rotation display
• Automatic restart after instantaneous power failure: Electronic bypass sequence
• Remote setting: Retry function
• Carrier frequency selection: Fast-response current limit
• Forward/reverse rotation prevention: Operation mode selection
• Slip compensation: Speed smoothing control
• Traverse: Auto tuning
• Applied motor selection: RS-485 communication
• PID control: PID pre-charge function
• Cooling fan operation selection: Stop selection (deceleration stop/coasting)
• Power-failure deceleration stop function: PLC function
• Life diagnosis: Maintenance timer
• Current average monitor: Multiple rating
• Test run: 24V power supply input for control circuit
• Safety stop function: Self power management
• BACnet communication: PID gain tuning
• Emergency drive: Design
• extended conformal coating: CA term (0-20mA)
• Forced air cooling: Supply voltage (AC)
• 200Vac-240Vac: (220Vac / 230Vac)
• Type of network: 3-phase/3P
• Rated current: 114A (LD Light duty)
• 125A (SLD Super Light duty): 110% In for 60s / 120% In for 3s overload current rating (inverse-time characteristics; Super light duty)
• 120% In for 60s / 150% In for 3s overload current rating (inverse-time characteristics; Light duty): Rated active power (kW)
• 30kW (LD Light duty): 30kW (SLD Super Light Duty)
• Rated power (HP): 40HP (LD Light Duty)
• 40HP (SLD Super Light Duty): Protection functions
• Overcurrent trip during acceleration: Overcurrent trip during constant speed
• Overcurrent trip during deceleration or stop: Regenerative overvoltage trip during acceleration
• Regenerative overvoltage trip during constant speed: Regenerative overvoltage trip during deceleration or stop
• Inverter overload trip (electronic thermal relay function): Motor overload trip (electronic thermal relay function)
• Heatsink overheat: Stall prevention stop
• Upper limit fault detection: Lower limit fault detection
• Output side earth (ground) fault overcurrent: Output short-circuit
• Option fault: Communication Option fault
• Parameter storage device fault: PU disconnection
• Output phase loss: CPU fault
• Operation panel power supply short circuit/RS-485 terminals power supply short circuit: 24Vdcpower fault
• Communication fault (inverter): Analog input fault
• USB communication fault: Safety circuit fault
• Internal circuit fault: User definition error in the PLC function
• Detection of loss of synchronism detection (not available in initial status): External thermal relay operation
• PTC thermistor operation: Retry count excess
• Abnormal output current detection: Overspeed occurrence
• 4mA input fault: Pre-charge fault
• PID signal fault: Inrush current limit circuit fault
• Instantaneous power failure: Undervoltage
• Input phase loss: Communication protocol
• Modbus RTU: Digital inputs
• 1 x digital input (source/sink) (STF): 1 x digital input (source/sink) (STR)
• 1 x digital input (source/sink) (STOP): 1 x digital input (source/sink) (RH)
• 1 x digital input (source/sink) (RM): 1 x digital input (source/sink) (RL)
• 1 x digital input (source/sink) (JOG): 1 x digital input (source/sink) (RT)
• 1 x digital input (source/sink) (MRS): 1 x digital input (source/sink) (RES)
• 1 x digital input (source/sink) (AU): 1 x digital input (source/sink) (CS)
• 1 x digital input (SS1 safe stop channel 1): 1 x digital input (SS1 safe stop channel 2)
• Digital outputs: 1 x digital output (SPDT (Single Pole Double Throw contact A1/B1/C1) (programmable)
• 1 x digital output (SPDT Single Pole Double Throw contact A2/B2/C2) (programmable): 1 x digital output (sink/source open collector transistor) (RUN; programmable)
• 1 x digital output (sink/source open collector transistor) (SU; programmable): 1 x digital output (sink/source open collector transistor) (IPF; programmable)
• 1 x digital output (sink/source open collector transistor) (OL; programmable): 1 x digital output (sink/source open collector transistor) (FU; programmable)
• 1 x digital output (programmable) (SO - Safety Monitor Output): Analog inputs
• 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA): Analog outputs
• 1 x analog output (0-10Vdc) (signal output): 1 x analog output (0-20mA) (current output)
• Degree of protection: IP00
• Chemical resistance: Chemical resistance (circuit board coating + plated conductors - IEC60721-3-3 3S2 3C2)
• Rated apparent power (S): 43kVA (LD Light Duty)
• 48kVA (SLD Super Light Duty): Application type
• Fan: Pump
• Air conditioning: Order code / Manufacturer SKU
• FR-F820-01250-3-N6: Manufacturer product status
• Commercialized: Equivalent to
• FRF820012503N6: Compliant with standard(s)
• UL: cUL
• CE: KC (South Korea) Radio Waves Act
• RoHS: IEC60721-3-3 (3S2; 3C2)
• Model: FR-F820-01250-3-N6
• Brand: MITSUBISHI
• Product Condition: New
• Horsepower Rating: 40 HP
• HP Rating @ 110% OL: 40 HP
• HP Rating @ 120% OL: 40 HP
• Rated Amps: 125 A
• Amp Rating @ 110% OL: 125 A
• Amp Rating @ 120% OL: 114 A
• Rated Voltage: 230 V
• Rated Input Frequency: 60 Hz
• Output Voltage: 230 V
• Output Amperage Rating: 125 A
• Phase Rating: 3 Phase Input - 3 Phase Output
• Constant Torque / Variable Torque: Variable Torque
• Phase: Three Phase
• Enclosure Rating: UL Type 1
• Series: F800
• Height: 20.37 in
• Width: 9.84 in
• Depth: 7.48 in
• Input Voltage: 230V
• Input Phase: 3-Phase
• Output Phase: 3-Phase
• Horsepower: LO: 40 HPMO: 40 HP
• Amps: LO: 125 AMO: 114 A
• Frame Size: F
• Built-In PLC: 6K steps
• Expansion Slots: 3
• Communication: BACnet MS/TP, Mitsubishi Inverter Protocol, Modbus RTU
• Control Mode: V/F, Flux Vector, Permanent Magnet Sensorless Vector
• Brake Transistor: No
• Nominal Input Voltage: 240 VAC
• Input Phases: 1, 3
• Duty Definition: SLD: 110% rated current for 60s, 120% rated current for 3s
• Horsepower Rating: SLD: 40 HP
• Amperage_Rating: SLD: 125.0A
• Duty Definition: LD: 120% rated current for 60s, 150% rated current for 3s
• Horsepower Rating: LD: 40 HP
• Amperage_Rating: LD: 114.0A
• Inputs: Digital: 10
• Inputs: Analog: 2
• Outputs: Digital: 4
• Outputs: Analog: 2
• Outputs: Relay: 2
• Safety IO: STO
• Safety Over Network: No
• IP Rating: IP00
• Similar To: FR-F820-30K-1
