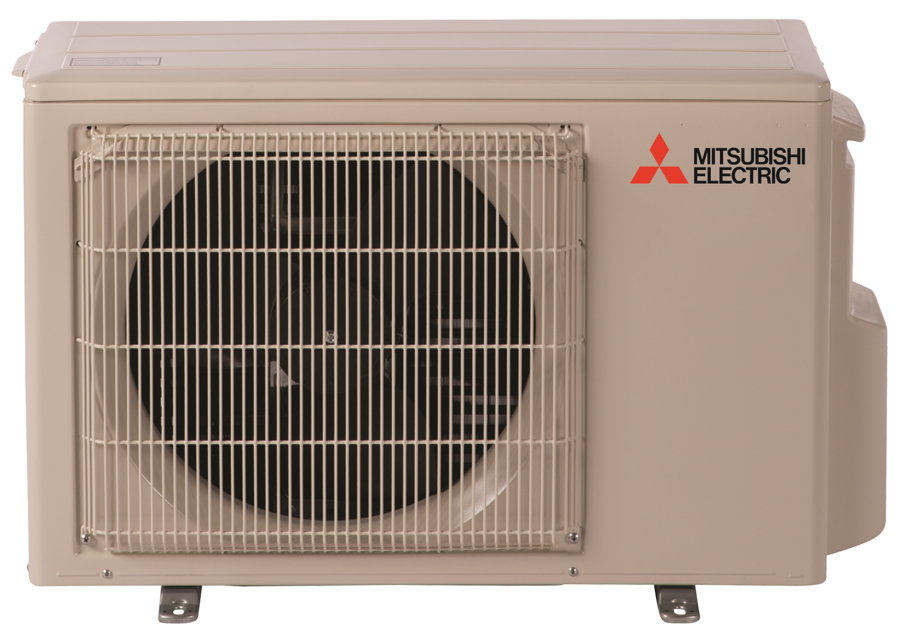

Mitsubishi SUZ-KA18NA2.TH Outdoor Unit, 18 MBH 20.7 SEER HP Single-Zone 230/1 M-Series

Product Description

The Mitsubishi model SUZ-KA18NA2.TH is an outdoor unit designed for single-zone applications. It delivers efficient heating and cooling performance. It features a variable-speed inverter-driven compressor and advanced technology for optimal efficiency. The unit operates at a seasonal energy efficiency ratio of 20.7 SEER.

• Variable speed inverter-driven compressor
• Cooling and heating capacities of 6,100 to 18,100 Btu/h
• R410A refrigerant with high-performance grooved piping

Product Highlights

This outdoor unit is suitable for residential HVAC installation and is efficient in various environments. It is designed for durability and reliability in operation.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: SUZ-KA18NA2.TH

Technical Specifications

• Cooling Capacity: 6,100 - 18,100 Btu/h
• Heating Capacity: 8,400 - 20,900 Btu/h
• SEER: 20.7
• EER: 12.5
• HSPF: 11.6
• Voltage: 208/230 V
• Frequency: 60 Hz
• Refrigerant: R410A
• Dimensions: 34-5/8 x 33-1/16 x 13 inches
• Weight: 141.4 lbs
• Liquid Line Size: 1/4 inches
• Suction Line Size: 1/2 inches
• Phase: Single
