Mitsubishi PCA-A30KA7.TH Indoor Unit, 30 MBH Concealed Ceiling HP Single-Zone 230/1 P-Series

Product Description

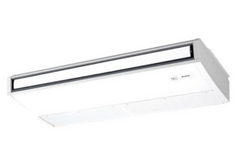

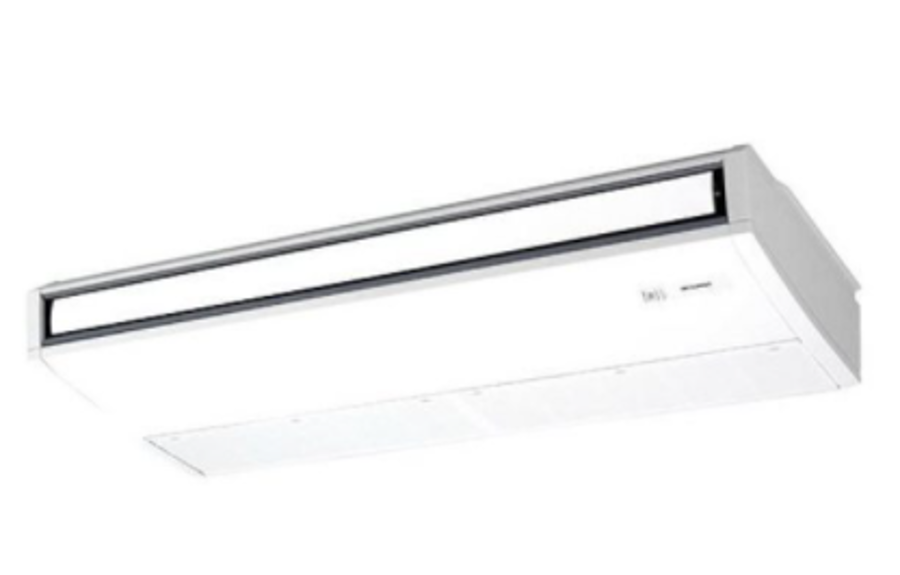

The Mitsubishi PCA-A30KA7.TH is a ceiling-suspended indoor unit designed for residential and commercial applications. This model provides efficient heating and cooling with a cooling capacity of thirty thousand BTU and a heating capacity of thirty-two thousand BTU. It operates on 208 to 230 volts and is compatible with R-410A refrigerant.

• Cooling rated capacity of thirty thousand BTU/h
• SEER rating of nineteen point six for energy efficiency
• Installation options for ceilings with maximum piping lengths of one hundred sixty-five feet

Product Highlights

This unit is equipped with features such as a standard air filter and options for a high-efficiency filter. The optional wireless remote controller allows for easy adjustments, while the self-check function ensures operational integrity. The compact design allows for flexible installation in various environments.

Product Information

Standard Information

• Brand: Mitsubishi
• Part Number: PCA-A30KA7.TH

Technical Specifications

• Cooling Capacity: 30,000 BTU/h
• Heating Capacity: 32,000 BTU/h
• Voltage: 208/230 VAC
• Phase: Single
• Height: 12.6 inches
• Length: 53.1 inches
• Width: 29.9 inches
• Weight: 81.6 pounds
• Refrigerant Type: R-410A
• Maximum Piping Length: 165 feet
• Maximum Piping Height: 100 feet
• Drain Connection Size: 1 1/32 inches
• Liquid Line Size: 3/8 inches
• Suction Line Size: 5/8 inches
