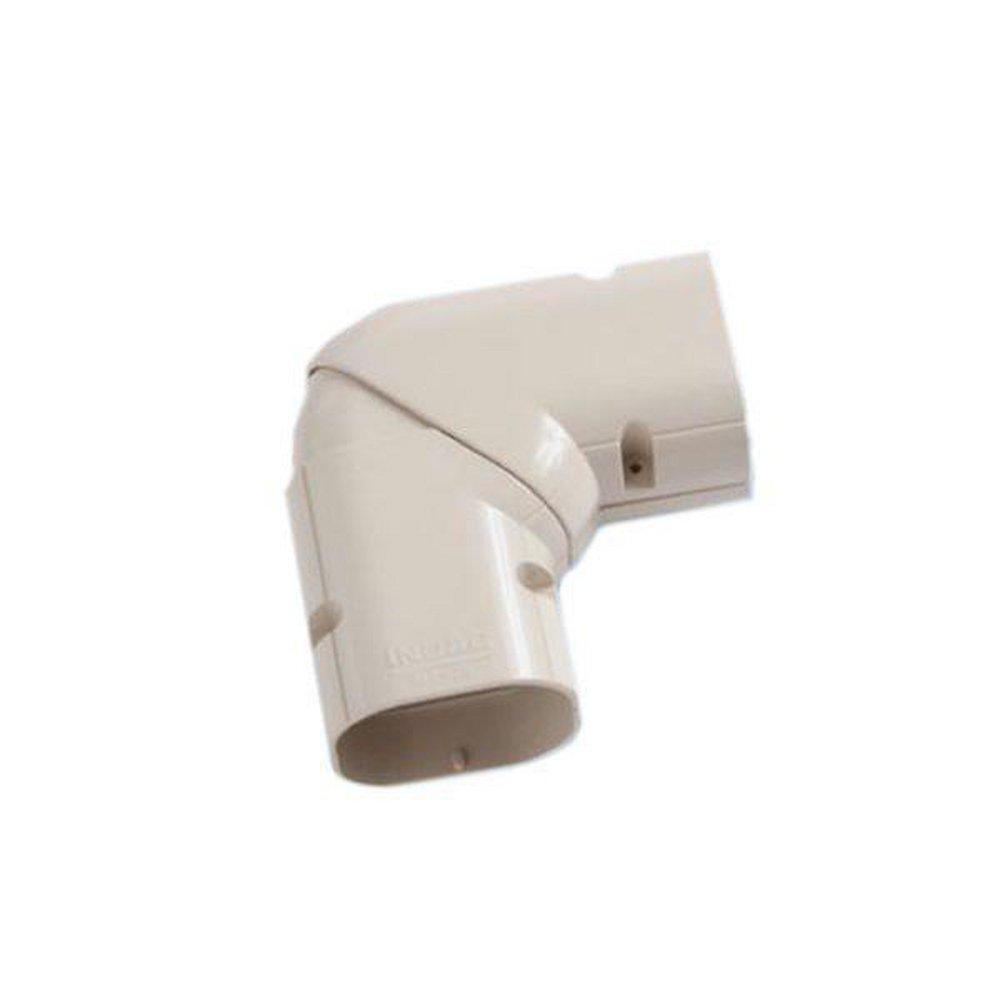

Mitsubishi NX-100 Line-Hide Size 100 Universal Elbow Line Set Cover

Product Description

The Mitsubishi NX-100 is a universal elbow designed for use with the Mitsubishi Line-Hide system. This elbow enables flexibility in planning, as it adjusts between 45 and 90 degrees for optimal line routing. The Line-Hide system accommodates up to four tubes for refrigerant and wiring protection.

• Adjustable from 45 to 90 degrees for versatile installation
• Constructed from UV resistant PVC for long-lasting durability
• Can be painted to match your home’s exterior

Product Highlights

Offers effective protection for refrigerant lines, drain tubes, and electrical connections while enhancing the look of the installation.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: NX-100

Technical Specifications

• Dimensions: 7 5/8 inches (length) x 4 3/16 inches (width) x 2 15/16 inches (height)
• Weight: 0.725 pounds
• Material: PVC
• Maximum Operating Temperature: 140 F
• Minimum Operating Temperature: -4 F
• Certifications: UL Listed
• Warranty: 1 Year
