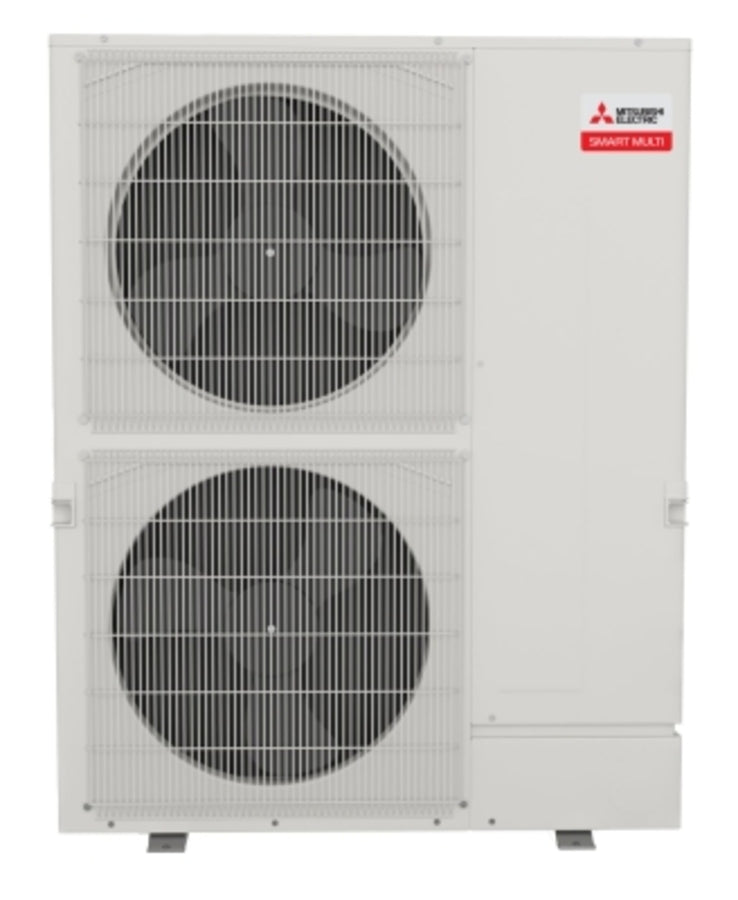

Mitsubishi MXZ-SM60NAM2-U1 Outdoor Unit, 60 MBH 20 SEER HP Smart Multi-Zone 230/1 M-Series

Product Description

The Mitsubishi MXZ-SM60NAM2-U1 is an outdoor unit designed for multi-zone HVAC systems. It offers a capacity of sixty thousand BTUs and has a Seasonal Energy Efficiency Ratio (SEER) of 20. This model operates with a single phase and is compatible with various Mitsubishi indoor units.

• Cooling Capacity: 60,000 BTU/h
• Heating Capacity: 66,000 BTU/h
• Number of HVAC Zones: Up to 12

Product Highlights

Use this outdoor unit to efficiently cool or heat multiple zones in a residential or commercial setting. Its compact design is ideal for limited spaces while providing effective climate control.

Product Information

Standard Information

• Brand: Mitsubishi
• Part #: MXZ-SM60NAM2-U1

Technical Specifications

• Cooling Capacity: 60,000 BTU/h
• Heating Capacity: 66,000 BTU/h
• SEER: 20
• EER: 12.2
• Voltage: 208-230 VAC
• Compressor Type: Scroll
• Heat Pump Type: Yes
• Refrigerant: R-410A
• Dimensions (L x W x H): 42.91 inches x 17.72 inches x 56.3 inches
• Weight: 326.28 lbs
• Maximum Piping Length: 492 feet
• Liquid Line Size (OD): 3/8 inches
• Suction Line Size (OD): 5/8 inches
• AHRI Usage: Outdoor
• UL Listed: Yes
• Prop 65 Warning: Yes
