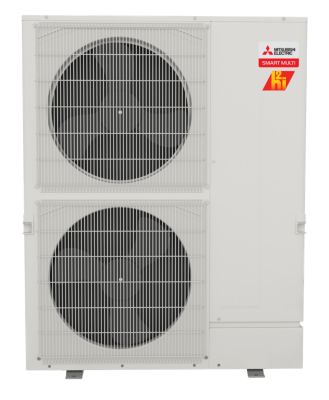

Mitsubishi MXZ-SM48NAMHZ2-U1 Outdoor Unit, 48 MBH 18.9 SEER HP Multi-Zone 230/1 M-Series H2i

Product Description

The Mitsubishi MXZ-SM48NAMHZ2-U1 is an outdoor unit designed for multi-zone heating and cooling. This model features a cooling capacity of 48,000 BTU per hour and a high energy efficiency rating.

• Cooling Capacity: 48,000 BTU/h
• Heating Capacity: 54,000 BTU/h
• Number of HVAC Zones: 12

Product Highlights

This outdoor unit is suitable for residential HVAC applications, particularly in ductless split systems. The unit supports multiple indoor zones, providing efficient temperature control across spaces.

Product Information

Standard Information

• Brand: Mitsubishi
• Part #: MXZ-SM48NAMHZ2-U1

Technical Specifications

• Weight: 302.03 pounds
• Cooling Rated Capacity: 48,000 BTU/h
• Heating Capacity: 54,000 BTU/h
• CFM: 3,885
• SEER2: 14.7-23
• Voltage: 208-230 VAC
• Refrigerant: R-410A
• Height: 56.3 inches
• Width: 42.91 inches
• Length: 17.72 inches
• Phase: Single
• Compressor Type: Scroll
• Liquid Line Size (OD): 3/8 inches
• Suction Line Size (OD): 5/8 inches
• Maximum Overcurrent Protection (MOCP): 80 amps
• Energy Star Rated: No
• UL Listed: Yes
