Mitsubishi MXZ-SM48NAMHZ-U1 Outdoor Unit 48 MBH 18.9 SEER HP Multi-Zone 230/1 M-Series H2i

Product Description

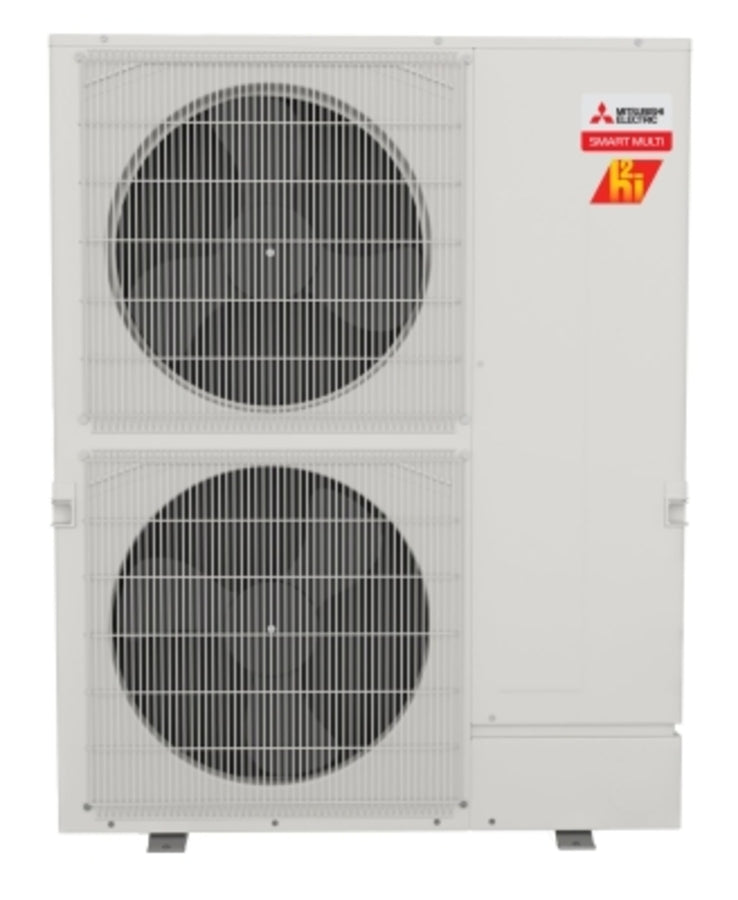

The Mitsubishi MXZ-SM48NAMHZ-U1 is a multi-zone outdoor unit designed for residential HVAC applications. This unit has a cooling capacity of sixteen thousand to forty-eight thousand BTU per hour and achieves a SEER rating of eighteen point nine. It operates on a voltage supply of two hundred eight to two hundred thirty volts and is suitable for various climatic conditions.

• Cooling capacity ranges from 16,000 to 48,000 BTU/h
• Equipped with a high-efficiency SEER rating of 18.9
• Supports up to eight indoor units

Product Highlights

Application: Outdoor, allowing installation flexibility for various locations.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: MXZ-SM48NAMHZ-U1

Technical Specifications

• Type: Outdoor Unit
• CFM: 3,885
• Weight: 302.03 lbs
• Height: 56.3 inches
• Length: 17.72 inches
• Width: 42.91 inches
• Refrigerant: R-410A
• Heating Capacity: 27,000 to 54,000 BTU/h
• Cooling Rated Capacity: 48,000 BTU/h
• Maximum Piping Length: 492 feet
• Number of HVAC Zones: 2 to 8
• UL Listed: Yes
• Energy Star Rated: No
