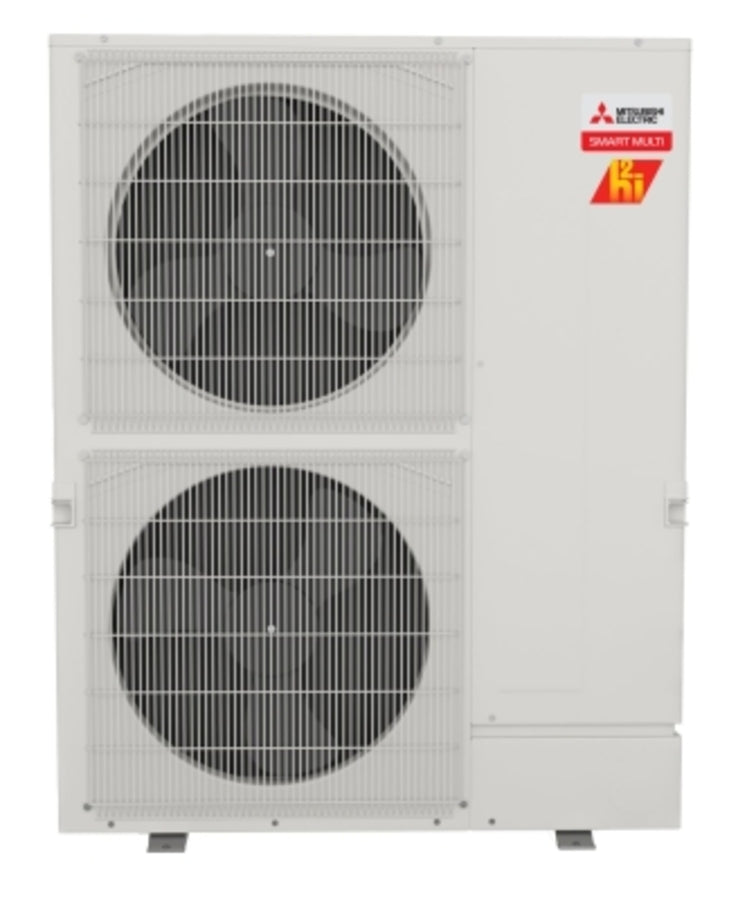

Mitsubishi MXZ-SM36NAMHZ-U1 Outdoor Unit 36 MBH 13 SEER HP Multi-Zone 230/1 M-Series

Product Description

The Mitsubishi MXZ-SM36NAMHZ-U1 is an outdoor unit designed for multi-zone heating and cooling applications. This unit offers a cooling capacity ranging from fifteen thousand five hundred to thirty-six thousand BTU per hour. It has a seasonal energy efficiency ratio (SEER) rating of up to twenty-three.

• Supports 2 to 8 HVAC zones for flexible installation
• Operates within a voltage range of 208-230 VAC
• Utilizes R-410A refrigerant for effective heat exchange

Product Highlights

This outdoor unit is ideal for residential HVAC systems, especially in applications needing efficient climate control across multiple spaces.

Product Information

Standard Information

• MPN: MXZ-SM36NAMHZ-U1
• Brand: Mitsubishi

Technical Specifications

• Weight: 302.03 pounds
• Cooling Capacity: 15,500-36,000 BTU/h
• Heating Capacity: 22,500-42,000 BTU/h
• SEER Rating: 23
• EER Rating: 15
• Voltage: 208-230 VAC
• Dimensions: Height 56.3 inches, Width 42.91 inches, Length 17.72 inches
• Maximum Piping Length: 492 feet
• Maximum Piping Height: 131 feet (outdoor unit below indoor unit); 164 feet (outdoor unit above indoor unit)
• Refrigerant Charge: 10 lbs. 9 oz.
• Liquid Line Size: 3/8 inches
• Suction Line Size: 5/8 inches
• Number of HVAC Zones: 2-8
• Prop 65 Compliant: Yes
• Country of Origin: Japan
