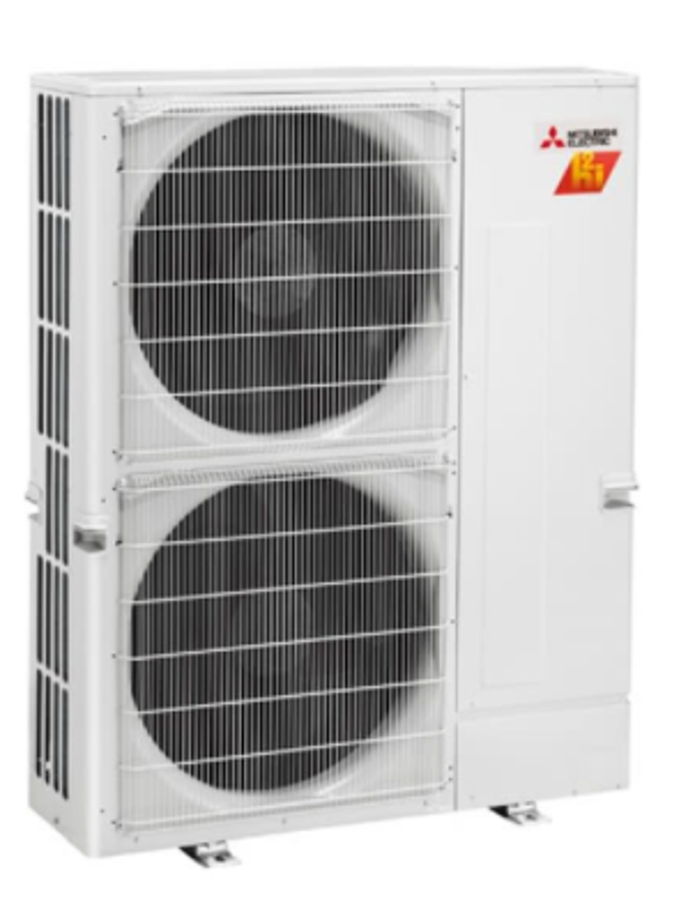

Mitsubishi MXZ-8C48NAHZ2-U1 Outdoor Unit 48 MBH 20 SEER HP Multi-Zone 230/1 M-Series

Product Description

The Mitsubishi MXZ-8C48NAHZ2-U1 is an outdoor unit designed for multi-zone heating and cooling. This system provides a capacity range from sixteen thousand to forty-eight thousand BTUs, making it suitable for various residential HVAC applications.

• Supports multiple HVAC zones from two to eight.
• High efficiency with a SEER rating of twenty.
• Uses R-410A refrigerant for optimal performance.

Product Highlights

This outdoor unit is part of the Mitsubishi MXZ series, known for its effective energy use and versatility across different environments.

Product Information

Standard Information

• Brand: Mitsubishi
• Model Number: MXZ-8C48NAHZ2-U1

Technical Specifications

• Cooling Capacity: 16,000-48,000 BTU/h
• Heating Capacity: 27,000-54,000 BTU/h
• SEER: 20
• HSPF: 11.5
• Number of HVAC Zones: 2-8
• Phase: Single
• Voltage: 208-230 VAC
• EER: 13.2
• Weight: 299.8 lbs
• Height: 56.2 inches
• Width: 42.9 inches
• Length: 17.7 inches
• Liquid Line Size (OD): 3/8 inches
• Suction Line Size (OD): 5/8 inches
• Maximum Piping Length: 492 feet
• Refrigerant: R-410A
• Energy Star Rated: No
• UL Listed: Yes
