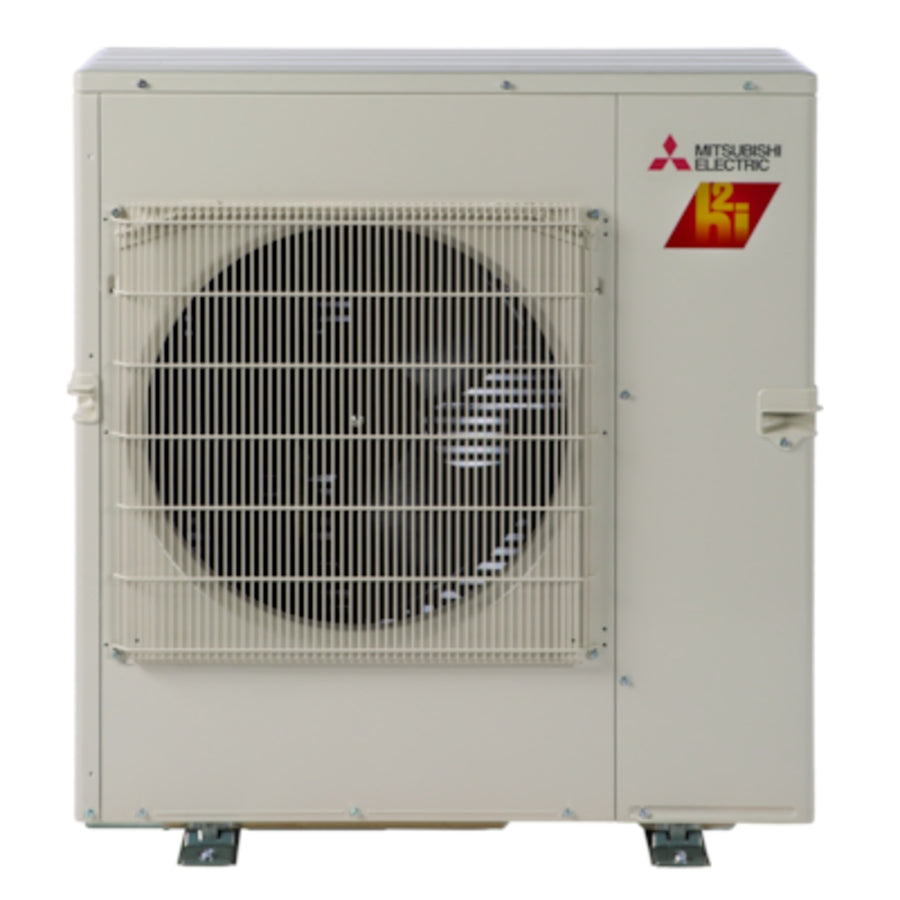

Mitsubishi MXZ-3C30NAHZ4-U1 Outdoor Unit 28.4 MBH 19 SEER HP Multi-Zone 230/1 M-Series H2i

Product Description

The Mitsubishi MXZ-3C30NAHZ4-U1 is an outdoor unit offering a cooling capacity of twenty-eight thousand four hundred BTU/hour. This multi-zone unit is designed for residential HVAC applications, making it ideal for installations where efficient temperature control is required across multiple zones.

• Cooling Rated Capacity: 28,400 BTU/hour
• Energy Efficiency Ratio (EER): 10.3-12.5
• SEER Rating: 16-18

Product Highlights

This unit is optimized for outdoor use and operates with R-410A refrigerant. It supports up to three HVAC zones, providing effective heating and cooling solutions for your home.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: MXZ-3C30NAHZ4-U1

Technical Specifications

• Cooling Capacity: 28,400 BTU/hour
• Heating Capacity: 28,600 BTU/hour
• Voltage: 208-230 VAC
• Current (Amps): 19.2
• Weight: 218.04 lbs
• Width: 41.36 inches
• Height: 48.44 inches
• Length: 17.38 inches
• Maximum Piping Length: 230 feet
• Number of HVAC Zones: 3
• Refrigerant Charge: 8 lbs 13 oz
• Refrigerant: R-410A
• Prop 65 Compliant: Yes
