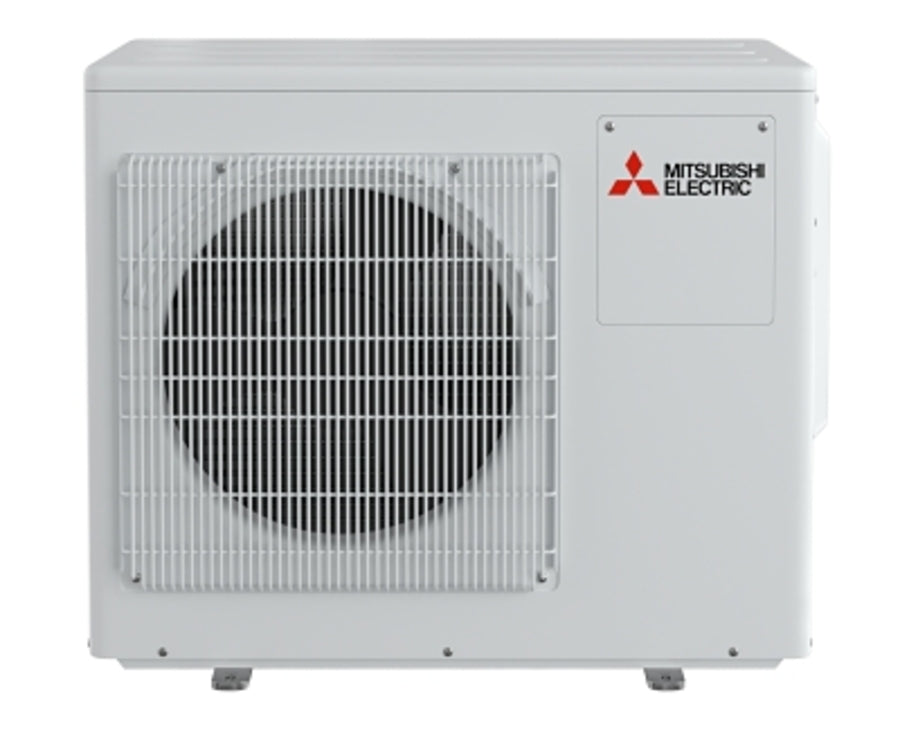

Mitsubishi MXZ-3C30NA4-U1 Multi-Zone Outdoor Unit 28.4 MBH 16.2 SEER HP

Product Description

The Mitsubishi MXZ-3C30NA4-U1 is a multi-zone outdoor unit designed for efficient climate control in residential settings. This unit offers a cooling capacity of twenty-eight thousand four hundred BTU per hour, making it suitable for multiple zones.

• Cooling Efficiency: 16.2 SEER rating
• Electrical: Operates on 208-230 VAC
• Refrigerant: Utilizes R-410A refrigerant

Product Highlights

This outdoor unit is ideal for homes requiring multiple zones. It allows for tailored heating and cooling solutions based on individual room needs.

Product Information

Standard Information

• Manufacturer: Mitsubishi
• Part Number: MXZ-3C30NA4-U1

Technical Specifications

• Cooling Capacity: 28,400 BTU/h
• Heating Capacity: 28,600 BTU/h
• SEER: 16.2-19
• Weight: 173.94 lbs
• Height: 38.98 inches
• Length: 17.32 inches
• Width: 41.33 inches
• Number of Zones: 3
• Liquid Line Size: 1/4 inch
• Suction Line Size: 1/2 inch, 3/8 inch
• Max Piping Length: 230 feet
• Max Piping Height: 49 feet
• Voltage: 208-230 VAC
• Rated Load Amps: 12
• Refrigerant Type: R-410A
