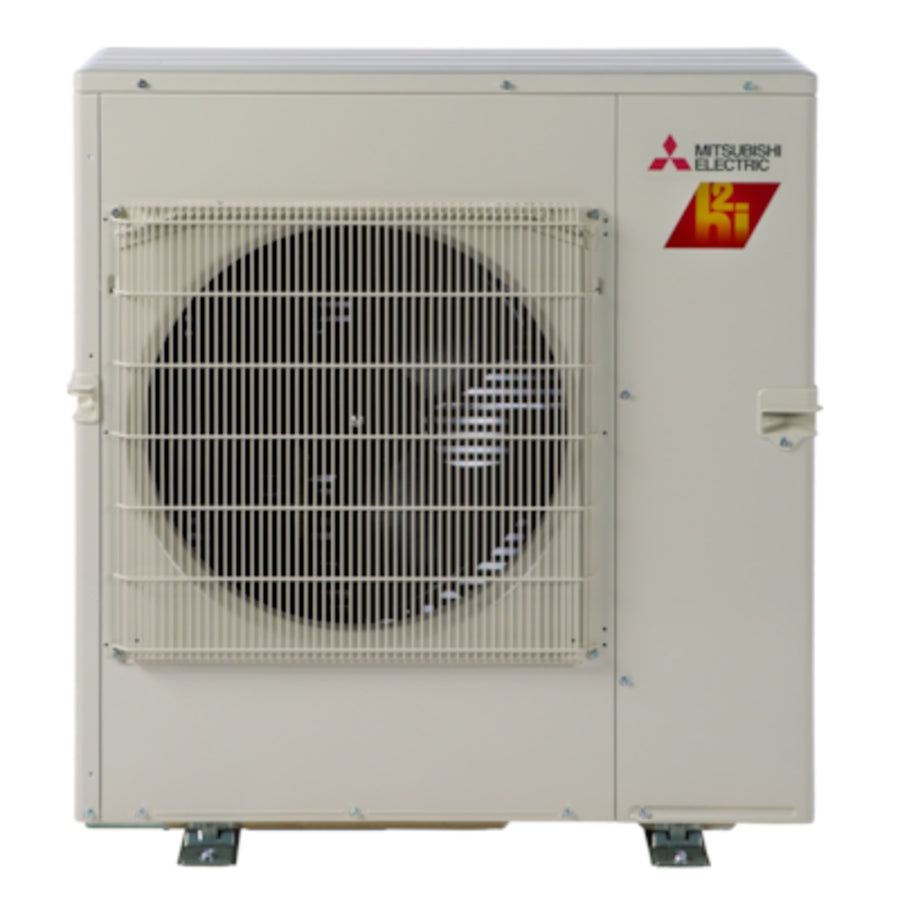

Mitsubishi MXZ-3C24NAHZ3-U1 Outdoor Unit 24 MBH 19 SEER HP Multi-Zone

Product Description

The Mitsubishi MXZ-3C24NAHZ3-U1 is a multi-zone outdoor unit designed for efficient heating and cooling. It provides a cooling capacity of 23,600 BTU/h and a heating capacity of 25,000 BTU. This outdoor unit is suitable for residential applications and has a SEER rating of 19, making it energy efficient.

• Cooling Capacity: 23,600 BTU/h
• Heating Capacity: 25,000 BTU
• Energy Star rated and designed for outdoor use

Product Highlights

This unit supports up to three HVAC zones with the use of compatible indoor units, enhancing comfort and efficiency in residential setups.

Product Information

Standard Information

• Brand: Mitsubishi
• Part Number: MXZ-3C24NAHZ3-U1

Technical Specifications

• Cooling Rated Capacity Btu/h: 24000
• EER: 9.6
• SEER: 16.2
• Voltage: 208-230 VAC
• Number of HVAC Zones: 3
• Weight: 213.85 lbs
• Dimensions (WxHxD): 41.34 x 48.43 x 17.32 inches
• Refrigerant: R-410A
• Inverter Technology: Yes
• Maximum Piping Length: 82 feet
• Maximum Piping Height: 49 feet
• Package Type: Heat Pump
