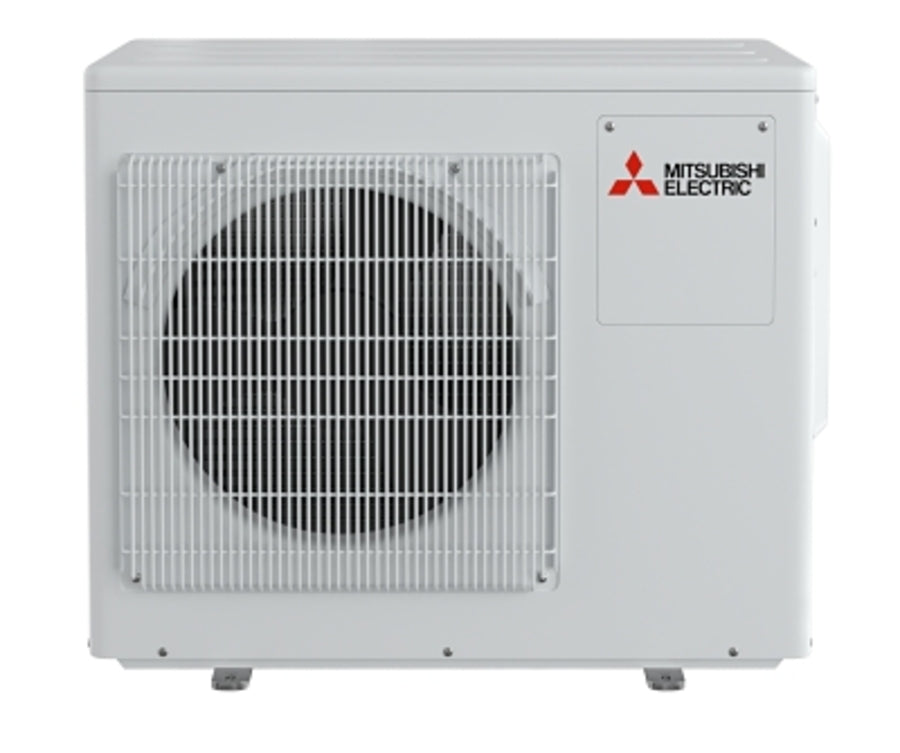

Mitsubishi MXZ-3C24NA4-U1 Outdoor Unit, 22 MBH 20 SEER HP Multi-Zone 230/1 M-Series

Product Description

The Mitsubishi MXZ-3C24NA4-U1 is an outdoor unit designed for multi-zone heating and cooling applications. This unit offers a cooling capacity of 23,600 BTU/h and a heating capacity of 25,000 BTU/h, making it suitable for various residential environments. Its efficiency is highlighted by a SEER rating of up to 20 and an EER range of 11.2 to 13.6, contributing to lower energy costs.

• Cooling Capacity: 23,600 BTU/h
• Heating Capacity: 25,000 BTU/h
• Power Supply: 208-230 VAC

Product Highlights

This outdoor unit features compact dimensions, allowing for flexible installation in various locations. It supports a high airflow rate, with CFM ranging from 2,133 to 2,243, ensuring effective air distribution. Designed for outdoor use, it operates efficiently in multiple HVAC zones, accommodating up to three zones in total.

Product Information

Standard Information

• Brand: Mitsubishi
• Part Number: MXZ-3C24NA4-U1

Technical Specifications

• Cooling Rated Capacity: 23600 BTU/h
• Heating Rated Capacity: 25000 BTU/h
• SEER: 15.8 - 20
• Weight: 173.9 lbs.
• Dimensions (H x W x L): 38.98 x 41.33 x 17.32 inches
• Suction Line Size: 1/2 in., 3/8 in.
• Liquid Line Size: 1/4 in.
• Voltage: 208-230 VAC
• Rated Load Amps: 12 A
• Refrigerant: R-410A
