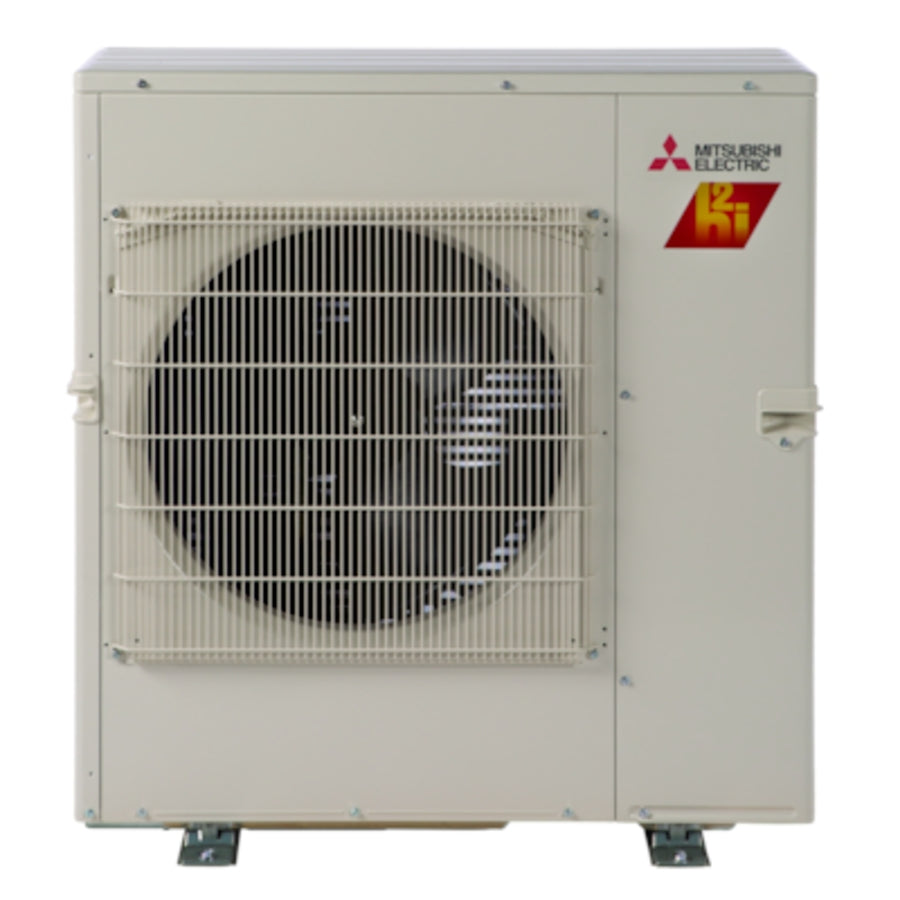

Mitsubishi MXZ-2C20NAHZ4-U1 Outdoor Unit 20 MBH 17 SEER HP Multi-Zone 230/1

Product Description

The Mitsubishi MXZ-2C20NAHZ4-U1 is an outdoor unit that offers a cooling capacity of 20,000 BTU with a SEER rating of 17. This unit is part of the M-Series heat pump system, designed for efficient multizone heating and cooling. It operates on 208-230 volts and is classified as a single-phase unit.

• Cooling Capacity: 20,000 BTU
• Heating Capacity: 22,000 BTU
• Energy Efficiency Ratio (EER): 11-13.5

Product Highlights

This unit is designed for residential use and is suitable for both new installations and replacements. It supports up to two HVAC zones, making it ideal for homes that require efficient temperature control across multiple areas.

Product Information

Standard Information

• Brand: Mitsubishi
• Part Number: MXZ-2C20NAHZ4-U1

Technical Specifications

• Cooling Rated Capacity: 20000 BTU/h
• Heating Capacity: 22000 BTU
• Voltage: 208-230 VAC
• Maximum Piping Height: 49 feet
• Maximum Piping Length: 164 feet
• Liquid Line Size (OD): 1/4 inch
• Suction Line Size (OD): 3/8 inch
• Number of HVAC Zones: 2
• Weight: 218.04 lbs
• Height: 48.44 inches
• Width: 41.36 inches
• Length: 17.38 inches
• Refrigerant: R-410A
• Rated Load Amps: 17.1
