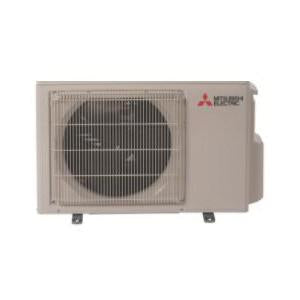

Mitsubishi Electric MUZ-GL09NA-U2 Heat Pump Outdoor Unit 9000 BTU/Hour

Product Description

The Mitsubishi Electric MUZ-GL09NA-U2 heat pump outdoor unit is a 1-zone unit with a voltage rating of 208/230 Volt AC and a frequency of 60 Hertz. It features a thermostat for temperature control and is designed for wall installation. The unit has a cooling capacity of 9000 BTU/Hour and a heating capacity of 10900 BTU/Hour.

• ETL (Canada and US) approval
• Residential application
• Power Rating 585 Watt (Cooling), 720 Watt at 47 Deg F (Heating)

Product Highlights

This Mitsubishi Electric heat pump is ideal for residential use, offering efficient cooling and heating with a thermostat for easy temperature management.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GL09NA-U2
• Country of Origin: United States

Technical Specifications

• Approval: ETL (Canada and US)
• Cooling Capacity: 9000 BTU/Hour
• Frequency Rating: 60 Hertz
• Number Of Phases: 1
• Power Rating: 585 Watt (Cooling), 720 Watt at 47 Deg F (Heating)
• Temperature Control Type: Thermostat
• Operating Temperature: 115 Deg F (Cooling), 75 Deg F (Heating)
• Installation: Wall
• Enclosure Finish: Munsell 3Y 7.8/1.1
• Size: 31-1/2 Inch Width x 11-1/4 Inch Depth x 21-5/8 Inch Height
• Refrigerant Type: R410A
• Heating Capacity: 10900 BTU/Hour
• Airflow Rating: 1229 CFM
• Energy Efficiency Ratio: 24.6 SEER, 15.4 EER
• Minimum Circuit Rating: 9 Amp
• Application: Residential
• Applicable Standard: AHRI
• Voltage Rating: 208/230 Volt AC
• Type: 1-Zone
• Dimensions: 21-5/8 in H x 31-1/2 in W x 11-1/4 in D
• EER Rating: 15.4
• Fuse Rating: 15 A
• Liquid Line Size: 1/4 in
• Mounting Type: Wall
• Phase: 1 ph
• SEER Rating: 24.6
• Sound Level: 48 dBA Cooling, 50 dBA Heating
• Temperature Rating: 14 to 115 deg F Cooling, -4 to 75 deg F Heating
• Tonnage: 0.75 ton
• Vent, Ducted or Ductless: Ductless
