Product Description

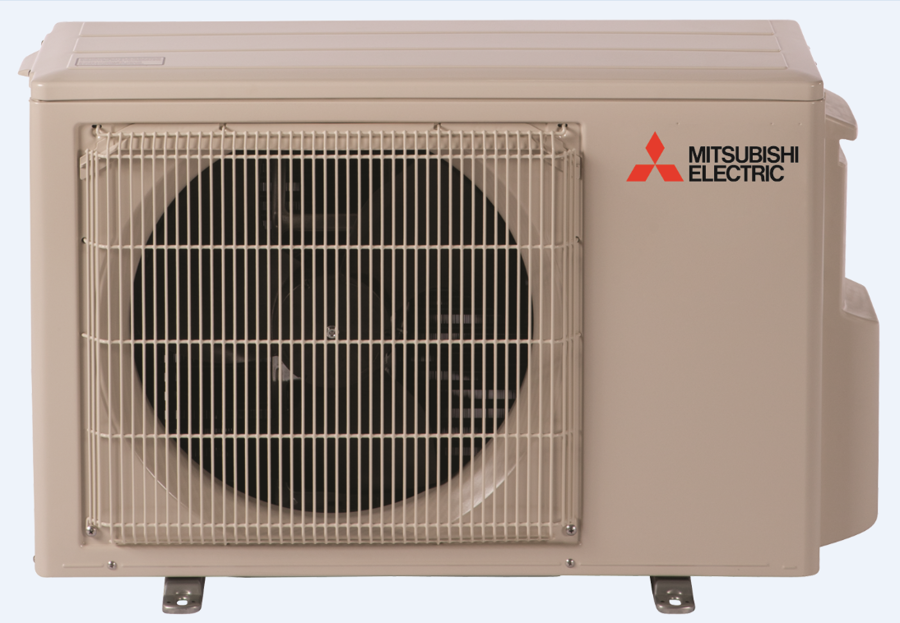

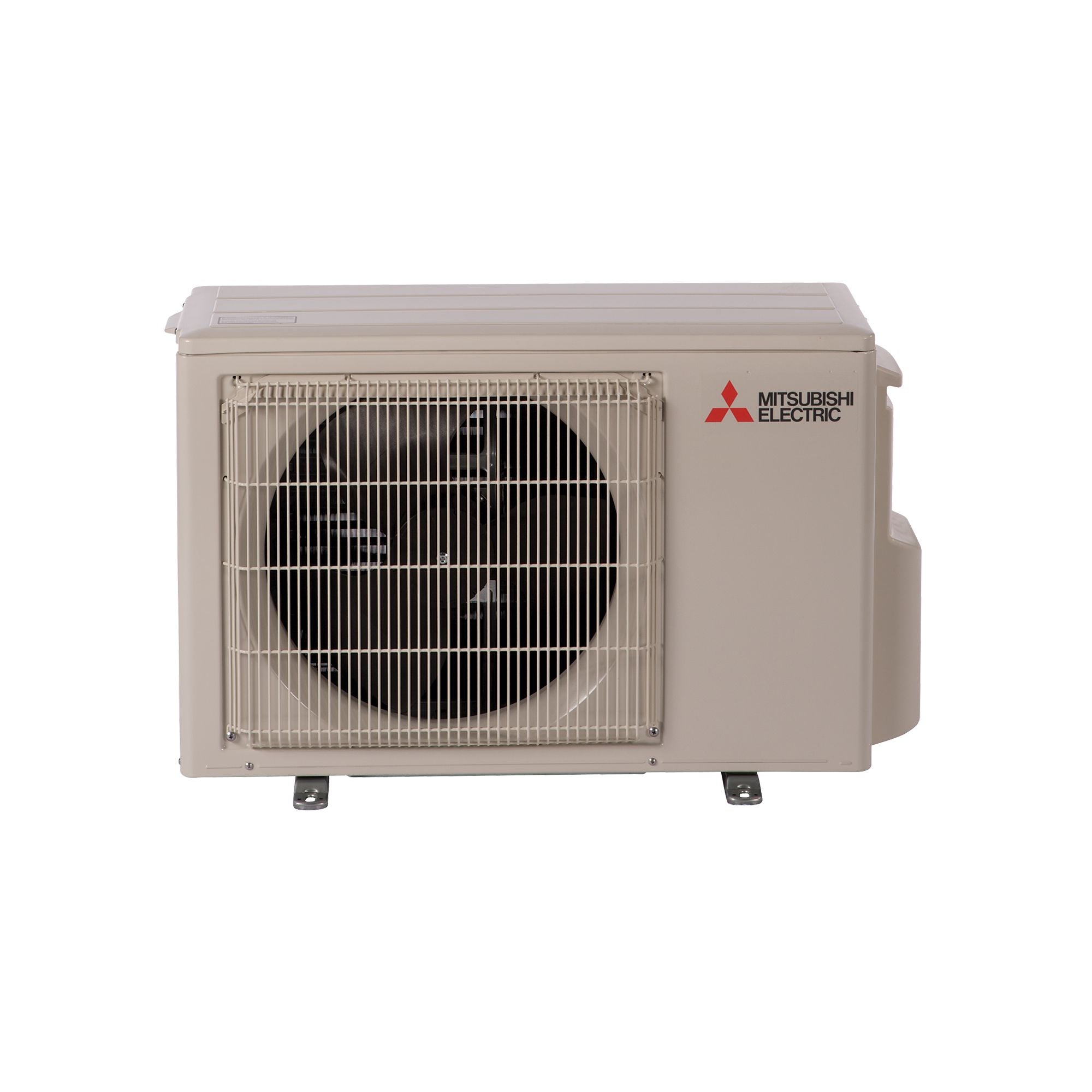

The Mitsubishi MUY-GL12NA-U2 is an outdoor unit featuring a cooling capacity of 12000 BTU per hour. This unit is part of the M-Series designed for energy-efficient cooling applications. The system operates at a SEER of 23.1, making it ideal for residential and light commercial use.
- Energy Star rated for high efficiency
- Single-zone system for targeted cooling
- Compatible with R-410A refrigerant
Product Highlights
This outdoor unit is suitable for various applications in residential settings. It achieves a high energy efficiency rating, reducing energy costs while providing effective cooling performance.
Product Information
Standard Information
-
Brand: Mitsubishi
-
Product Family: MUY-GL
Technical Specifications
-
Cooling Capacity: 12000 BTU/h
-
SEER: 23.1
-
Rated Load Amps (RLA): 4.9
-
Voltage: 208-230 VAC
-
Phase: Single
-
Refrigerant: R-410A
-
Maximum Piping Length: 65 feet
-
Liquid Line Size: 1/4 inch
-
Suction Line Size: 3/8 inch
-
Weight: 84 pounds
-
Height: 25 inches
-
Width: 15 inches
-
Length: 37 inches
-
Maximum Overcurrent Protection (MOCP): 15 amps
-
Energy Star Rated: True
