Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+9K+9K+9K+9K+9K+9K+15K

Description

This comprehensive Mitsubishi Electric bundle is designed to provide efficient heating and cooling solutions for both residential and commercial environments. Featuring a powerful MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle allows for the connection of multiple indoor units, ensuring customized comfort across various spaces. Included are three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX15NL) that offer advanced filtration, built-in Wi-Fi, and quiet operation. Additionally, two branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures seamless installation and performance. This bundle is ideal for those looking to enhance their HVAC systems with reliable, energy-efficient components.

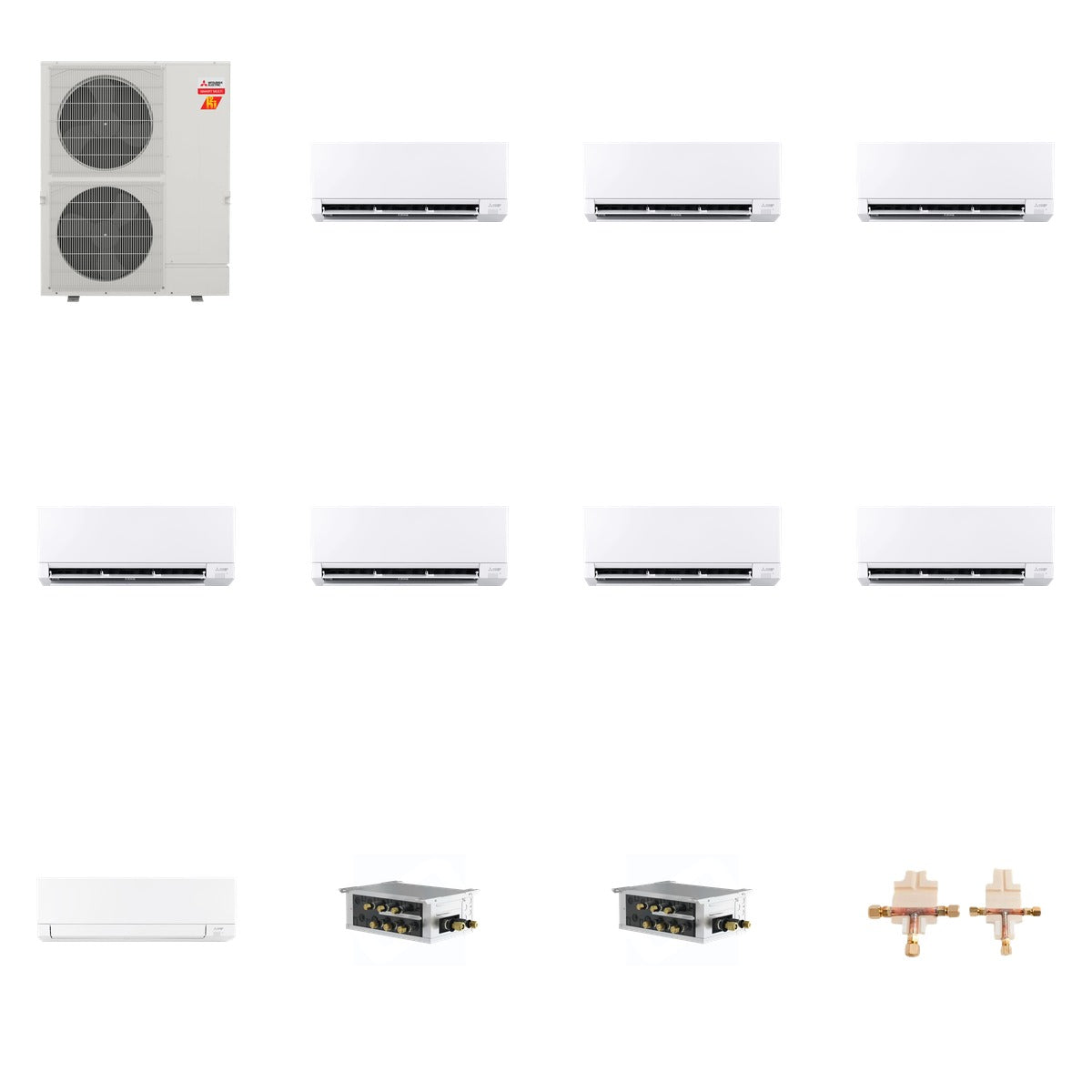

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x6)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 416.1 lb (Mitsubishi 225 lb + Mitsubishi 22 lb + Mitsubishi 132 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 6,000 BTU (MSZ-GX06NL), 9,000 BTU (MSZ-GX09NL), 15,000 BTU (MSZ-GX15NL)
• SEER2 Rating: Up to 28.4 (MSZ-GX09NL and MSZ-GX15NL)
• Voltage: 208/230 Volts
• Material: Copper (MSDD-50AR2-E)
• Dimensions: Vary by unit; MXZ-SM60NL measures 41-11/32 in W x 13 in D x 52-11/16 in H

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the included air handlers are designed for both single and multi-zone configurations. The branch boxes and distribution kit enhance refrigerant management, ensuring optimal performance and comfort.
