Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+9K+9K+9K+9K+12K+18K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial environments. Featuring a powerful Mitsubishi Electric MXZ-SM60NL outdoor unit, this system supports multiple indoor units, allowing for customized climate control across various zones. The included MSZ-GX series wall-mounted air handlers (ranging from 6,000 to 18,000 BTU) ensure optimal performance with advanced filtration and smart technology. Additionally, the PAC-LMA branch boxes facilitate seamless refrigerant distribution, making this bundle ideal for those seeking a robust and flexible HVAC system.

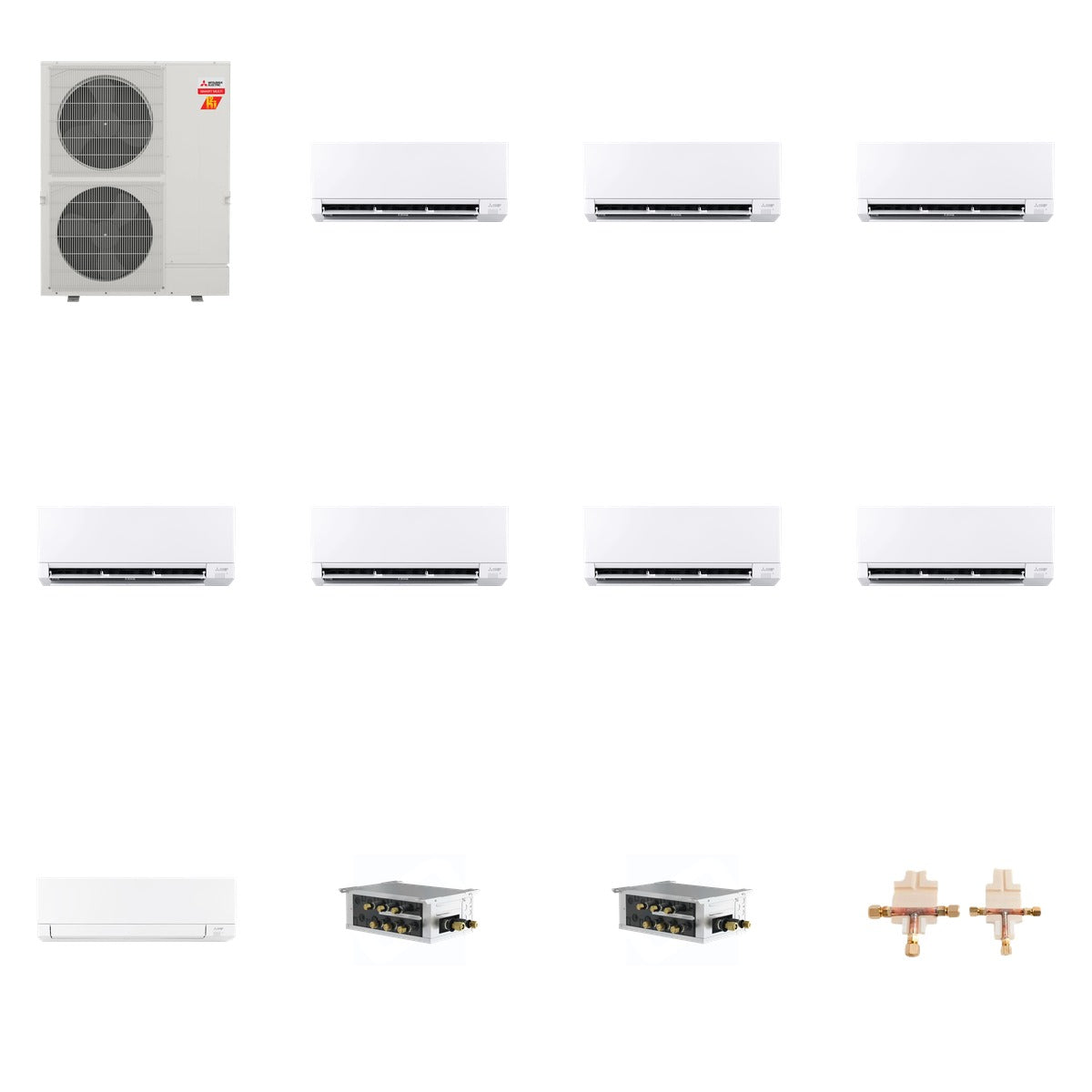

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX12NL - R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 422.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 88 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacities: 6,000 to 18,000 BTU
• SEER2 Ratings: Up to 28.4
• Voltage: 208/230 Volts
• Refrigerant Type: R454B
• Sound Levels: As low as 19 dB(A)
• Dimensions (MXZ-SM60NL): 41-11/32 in W x 13 in D x 52-11/16 in H

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, effectively managing temperature across different areas of a home or commercial space. The outdoor unit is compatible with various M-Series and CITY MULTI indoor units, ensuring flexibility in installation and performance. The included branch boxes and distribution kit enhance refrigerant flow, optimizing system efficiency.
