Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+9K+9K+9K+9K+12K+15K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring a powerful MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle includes multiple wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX15NL) that cater to various room sizes and configurations. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensures optimal refrigerant flow and distribution, while the MSDD-50AR2-E branch pipe kit simplifies installation. Together, these components create a versatile and effective climate control system that meets diverse needs.

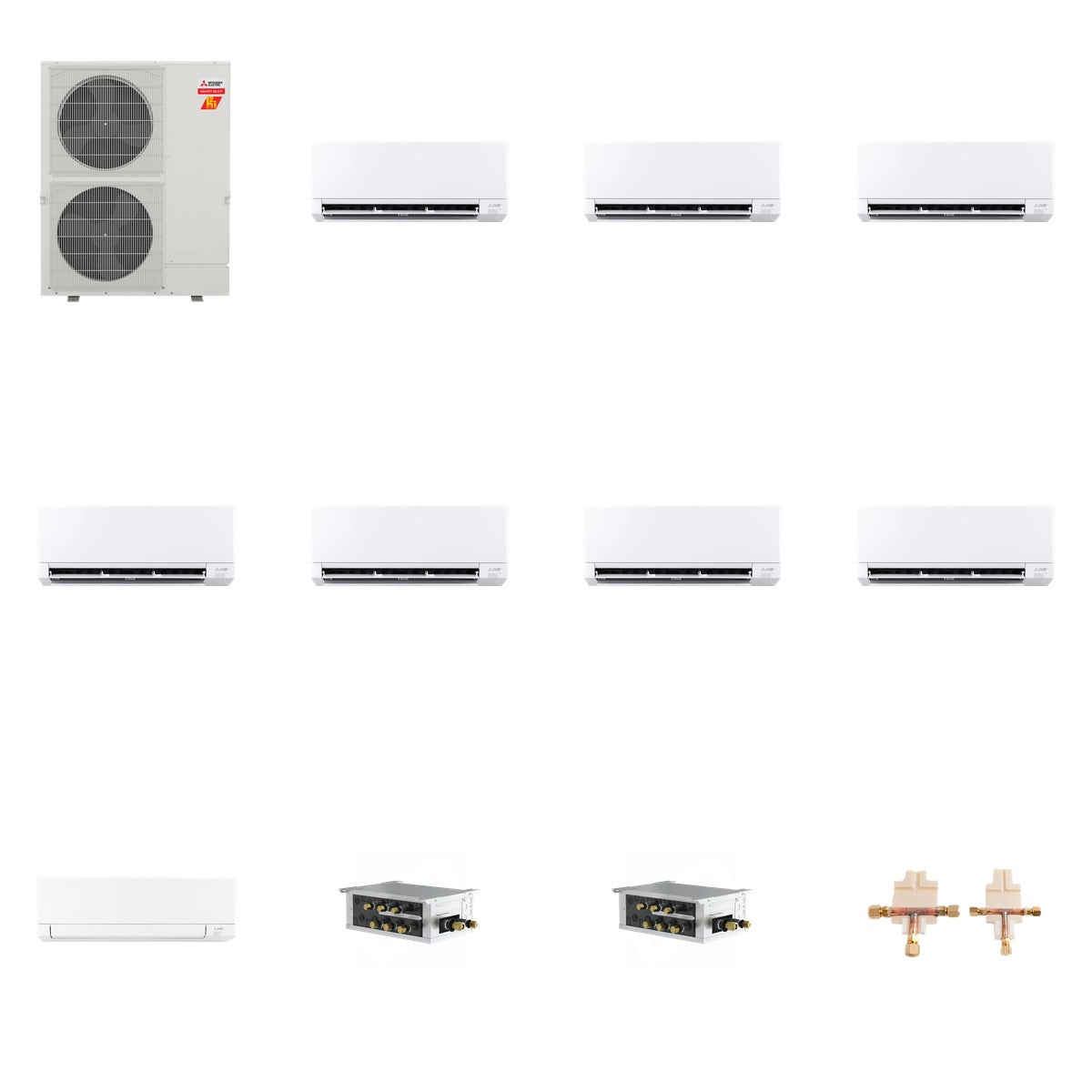

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX09NL - 9k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX12NL - 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 416.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 88 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU cooling, 66,000 BTU heating, SEER2 up to 23
• MSZ-GX06NL: 6,000 BTU cooling, 7,200 BTU heating, SEER2 up to 28.4
• MSZ-GX09NL: 9,000 BTU cooling, 10,900 BTU heating, SEER2 up to 28.4
• MSZ-GX12NL: 12,000 BTU cooling, 14,400 BTU heating, SEER2 up to 28.4
• MSZ-GX15NL: 15,000 BTU cooling, 18,000 BTU heating, SEER2 up to 28.4
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, allowing for customized heating and cooling across various spaces. The outdoor unit connects seamlessly with the included indoor air handlers, while the branch boxes and distribution kit facilitate efficient refrigerant management. Designed for use with Mitsubishi Electric's M-Series and CITY MULTI systems, this bundle is perfect for both residential and commercial installations.
