Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K+9K+18K

Description

This comprehensive HVAC bundle includes essential components designed to work seamlessly together for optimal heating and cooling performance. The Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit serves as the powerhouse, supporting multiple indoor units for customized climate control. Paired with the MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX18NL wall-mounted air handlers, this bundle provides efficient heating and cooling for various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure effective refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these products create a versatile and efficient multi-zone HVAC system suitable for both residential and commercial environments.

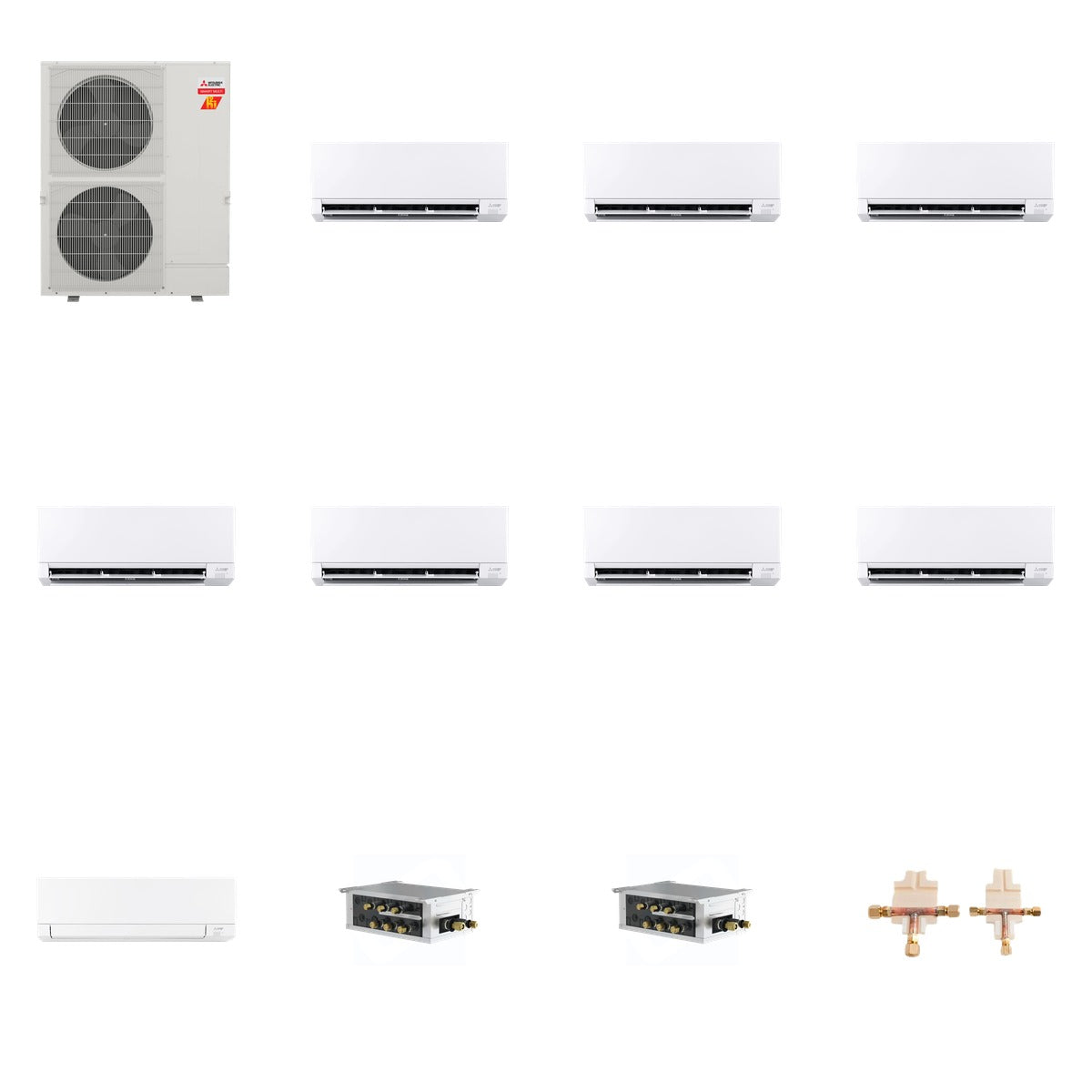

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 422.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 88 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU cooling, 66,000 BTU heating, SEER2 up to 23
• MSZ-GX06NL: 6,000 BTU cooling, 7,200 BTU heating, SEER2 up to 28.4
• MSZ-GX09NL: 9,000 BTU cooling, 10,900 BTU heating, SEER2 up to 28.4
• MSZ-GX18NL: 18,000 BTU cooling, 21,600 BTU heating, SEER2 22.5
• PAC-LMA50BC: 5 ports, compatible with MXZ model
• PAC-LMA30BC: 3 ports, supports balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper construction

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor units. Compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, it is ideal for both residential and commercial applications, ensuring optimal comfort and energy efficiency.
