Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K+12K+18K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring a powerful Mitsubishi Electric MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle allows for customized climate control across multiple indoor zones. Paired with three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX18NL), this system ensures optimal comfort and energy efficiency. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures a leak-free installation. Together, these components create a robust and versatile HVAC system that meets diverse heating and cooling needs.

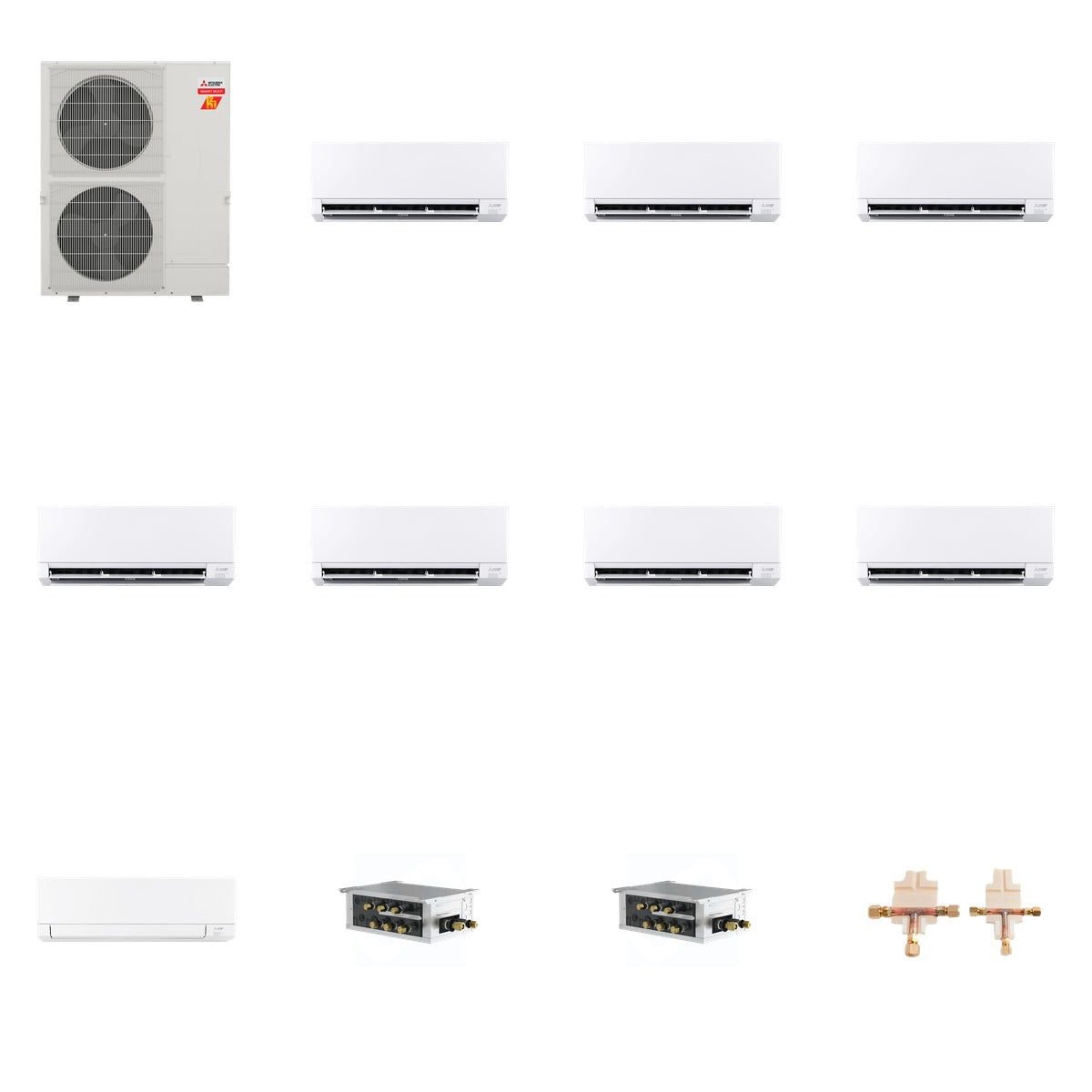

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX09NL - 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX12NL - 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 422.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 6k BTU (MSZ-GX06NL), 9k BTU (MSZ-GX09NL), 12k BTU (MSZ-GX12NL), 18k BTU (MSZ-GX18NL)
• SEER2: Up to 28.4 (MSZ-GX series)
• Refrigerant: R454B
• Voltage: 208/230 Volts
• Sound Level: As low as 19 dB(A)
• Branch Box Ports: 5 (PAC-LMA50BC), 3 (PAC-LMA30BC)

Use & Compatibility

This bundle is ideal for creating a multi-zone heating and cooling system, suitable for both residential and commercial environments. The outdoor unit is compatible with various indoor models, allowing for flexible configurations. The branch boxes and distribution kit ensure efficient refrigerant flow, making it easy to maintain optimal temperatures across multiple zones.
