Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K+12K+15K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial environments. The centerpiece of this bundle is the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, which connects to multiple indoor units for customized climate control. Paired with a selection of wall-mounted air handlers, including the MSZ-GX06NL, MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX15NL, this bundle offers versatility in managing different room sizes and configurations. Additionally, the inclusion of branch boxes and distribution kits ensures optimal refrigerant flow and system performance, making this bundle an ideal choice for those looking to enhance their HVAC systems.

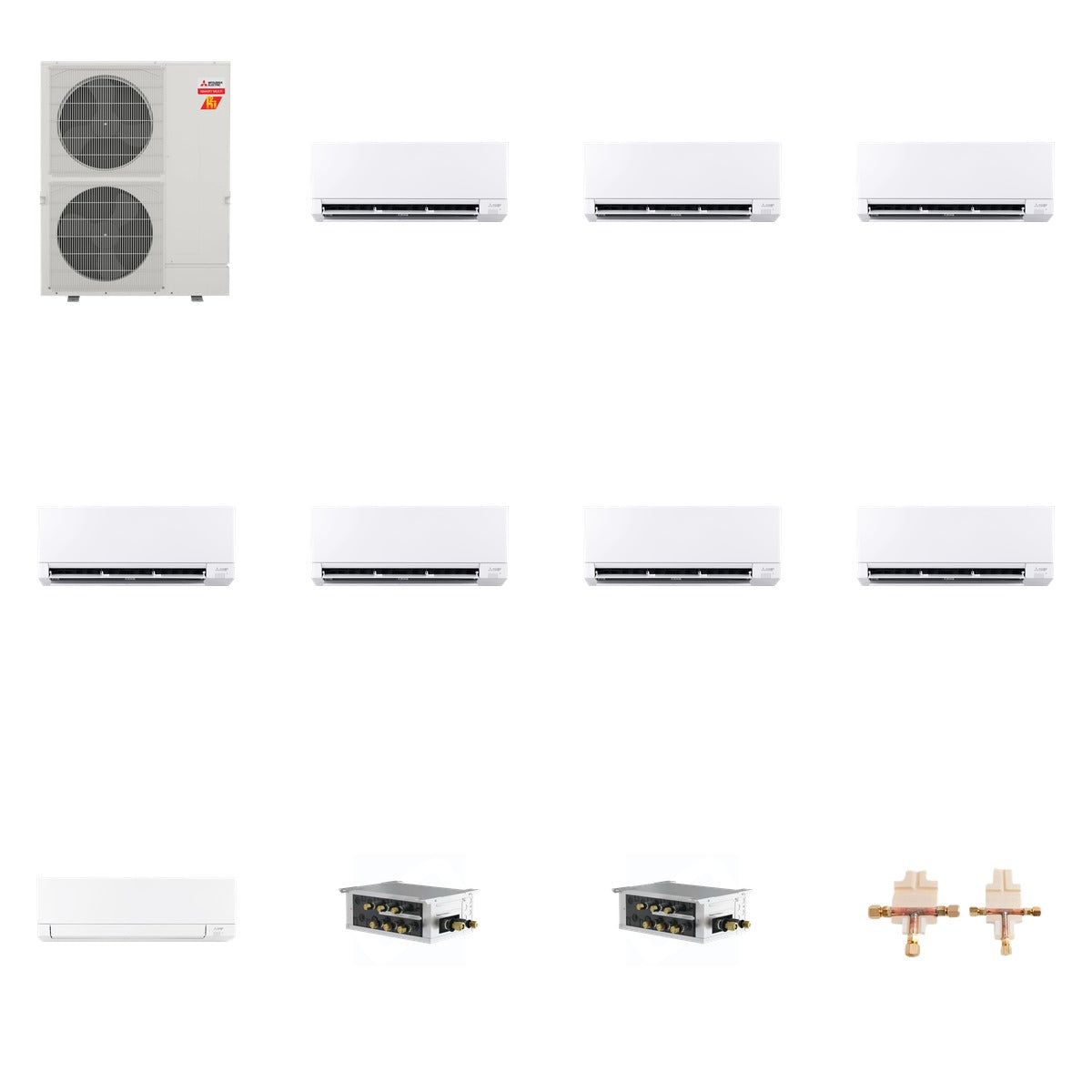

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX12NL - R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 416.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23
• MSZ-GX06NL: 6,000 BTU Cooling, 7,200 BTU Heating, SEER2 up to 28.4
• MSZ-GX09NL: 9,000 BTU Cooling, 10,900 BTU Heating, SEER2 up to 28.4
• MSZ-GX12NL: 12,000 BTU Cooling, 14,400 BTU Heating, SEER2 up to 28.4
• MSZ-GX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 28.4
• PAC-LMA50BC: 5 Ports, 208/230 Volts
• PAC-LMA30BC: 3 Ports, 208/230 Volts
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper, R-410A/R-454B Compatible

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, allowing for efficient heating and cooling across various spaces. The outdoor unit connects seamlessly with the included wall-mounted air handlers, making it suitable for both residential and commercial applications. The branch boxes and distribution kit enhance refrigerant management, ensuring optimal performance and comfort in any environment.
