Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+9K+9K+9K+15K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide optimal heating and cooling solutions for both residential and commercial spaces. Featuring a powerful MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle includes four wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX15NL) that ensure efficient climate control across various zones. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant flow to multiple indoor units, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced performance and easy installation. Together, these components create a versatile and efficient HVAC system tailored to meet diverse heating and cooling needs.

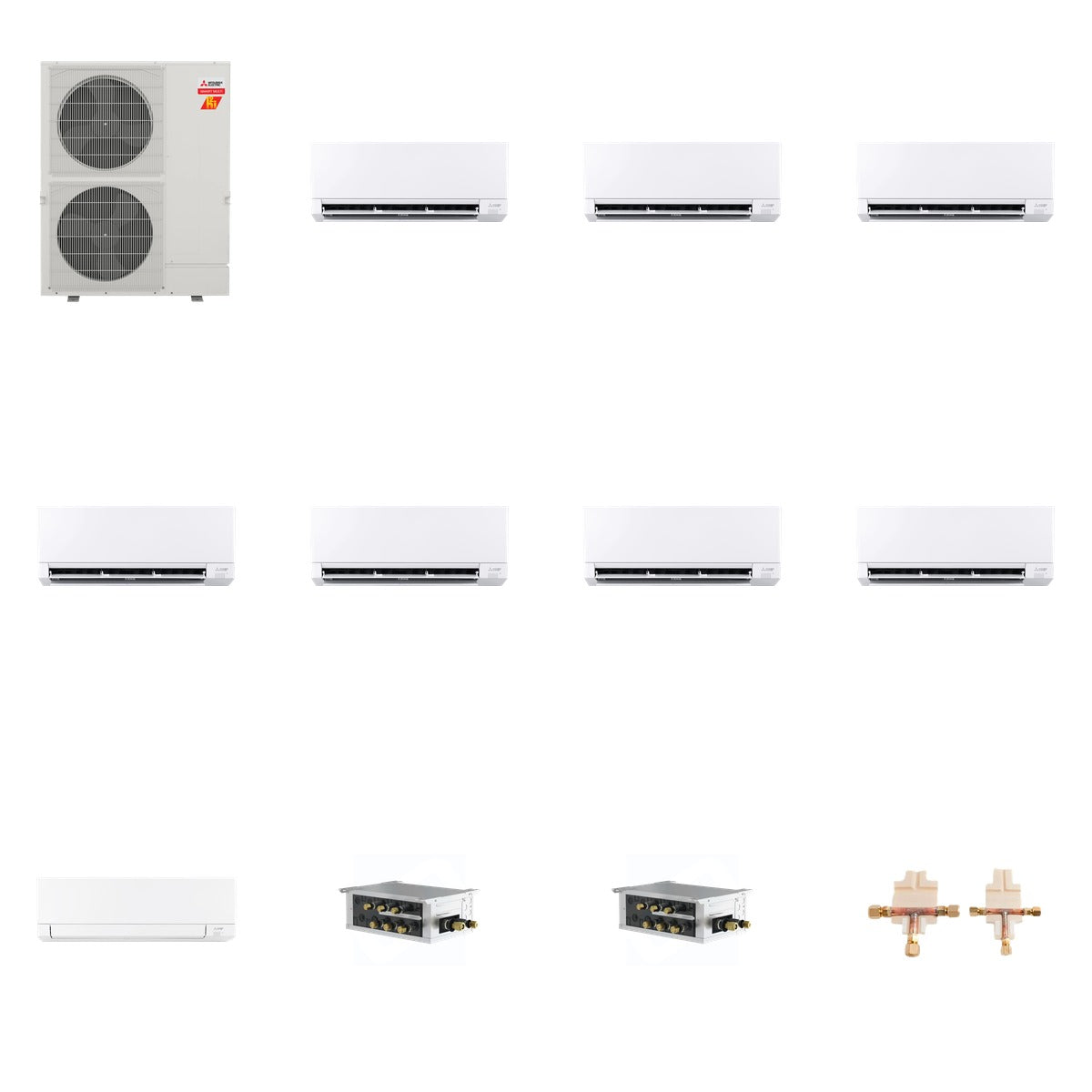

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 416.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU/h
• Heating Capacity: Up to 66,000 BTU/h
• SEER2 Rating: Up to 28.4
• Voltage: 208/230 Volts
• Sound Level: As low as 19 dB(A)
• Dimensions (Outdoor Unit): 41-11/32 in W x 13 in D x 52-11/16 in H
• Material: Copper and high-grade insulation

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, making it suitable for both residential and commercial environments. The outdoor unit is compatible with various Mitsubishi Electric indoor units, allowing for flexible configurations. The included branch boxes and distribution kit ensure efficient refrigerant management, optimizing system performance across multiple zones.
