Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+9K+9K+18K+18K

Description

This comprehensive HVAC bundle features essential components for a multi-zone heating and cooling system, offering flexibility and efficiency for both residential and commercial applications. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, supporting up to eight indoor units. Paired with four wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX18NL), this setup ensures optimal comfort across various spaces. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these products create a robust and versatile climate control solution.

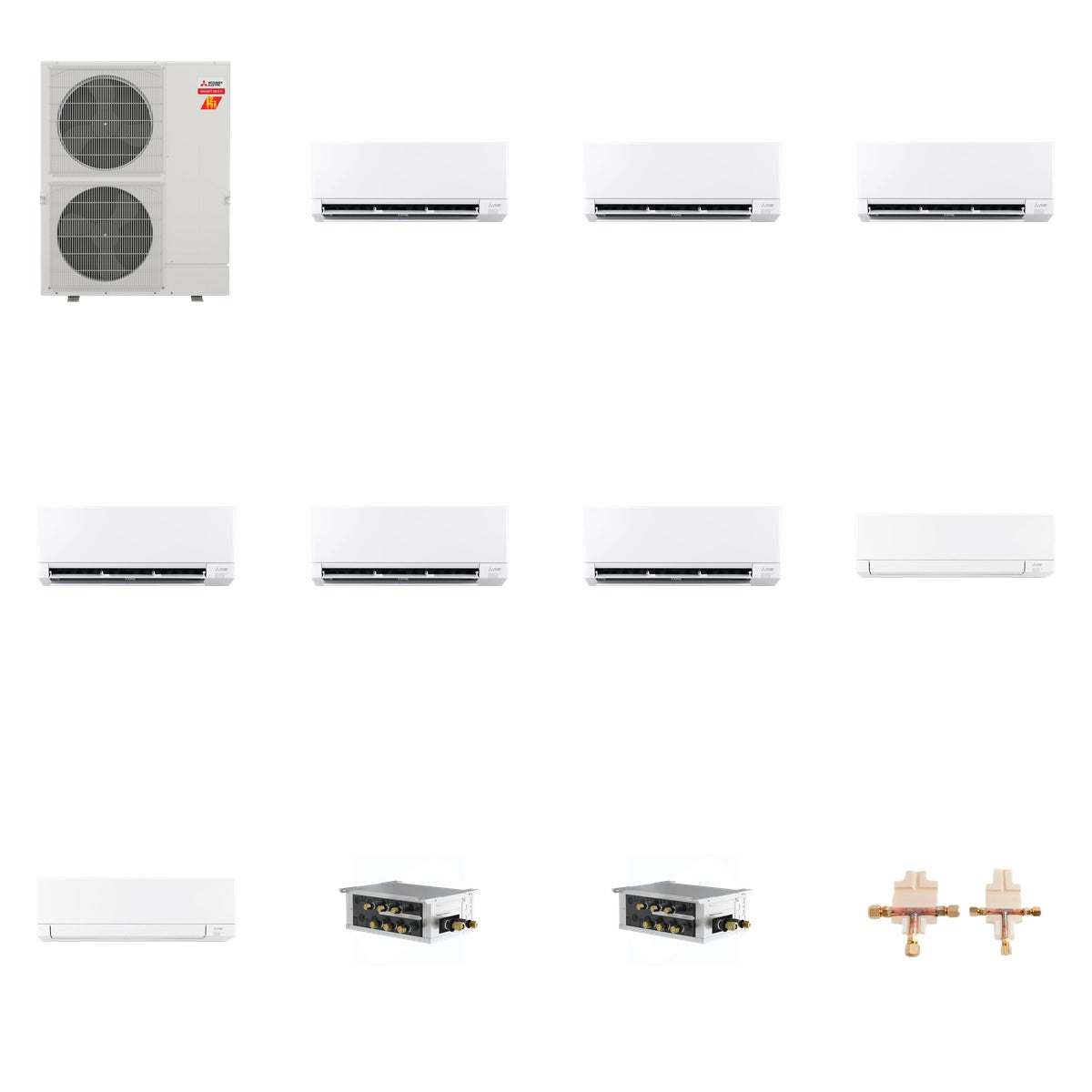

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 428.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 44 lb + Mitsubishi 56 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Cooling BTU: 6,000 - 18,000 BTU (MSZ-GX series)
• SEER2: Up to 28.4 (MSZ-GX series)
• Refrigerant: R454B
• Voltage: 208/230 Volts
• Dimensions: Varies by unit (see specifications)
• Noise Level: As low as 19 dB(A) (MSZ-GX series)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, ideal for both residential and commercial settings. The outdoor unit is compatible with various Mitsubishi Electric indoor units, allowing for tailored heating and cooling solutions across different spaces. The branch boxes and distribution kit ensure efficient refrigerant flow, making installation straightforward and effective.
