Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+9K+15K+15K+15K

Description

This comprehensive bundle includes essential components for setting up an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the powerhouse, capable of connecting to multiple indoor units for optimized heating and cooling across various spaces. Complementing this unit are four advanced wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX15NL) that provide tailored comfort solutions with energy-efficient operation and smart technology. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, ensuring balanced performance throughout the system. This bundle is designed for both residential and commercial applications, making it an ideal choice for diverse environments.

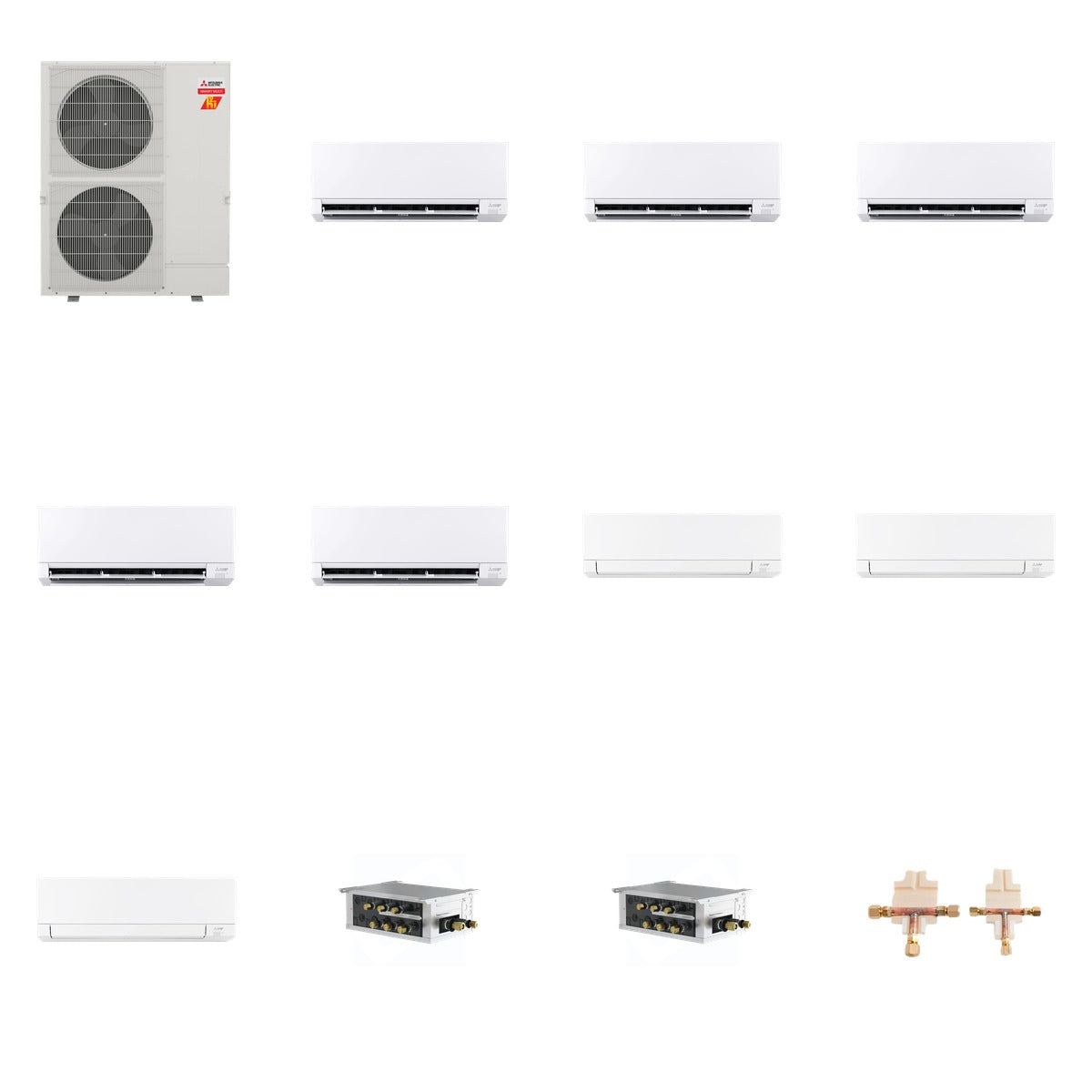

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 416.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 22 lb + Mitsubishi 66 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2 Rating: Up to 28.4 (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX15NL)
• Voltage: 208/230V (All units)
• Sound Level: As low as 19 dB(A) (MSZ-GX06NL)
• Dimensions: 41-11/32 in W x 13 in D x 52-11/16 in H (MXZ-SM60NL)
• Material: Oxygen-Free Copper (MSDD-50AR2-E)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, ideal for both residential and commercial applications. The outdoor unit connects to various indoor air handlers, allowing for customized climate control in different zones. The included branch boxes and distribution kit ensure efficient refrigerant flow and optimal performance across all connected units.
