Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+9K+12K+12K+18K

Description

This comprehensive bundle includes everything you need for an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor air handlers. Paired with four wall-mounted units (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX12NL, MSZ-GX18NL), this setup ensures optimal comfort across various room sizes. The included branch boxes (PAC-LMA50BC, PAC-LMA30BC) facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances installation efficiency. Together, these components create a versatile and effective climate control solution for both residential and commercial applications.

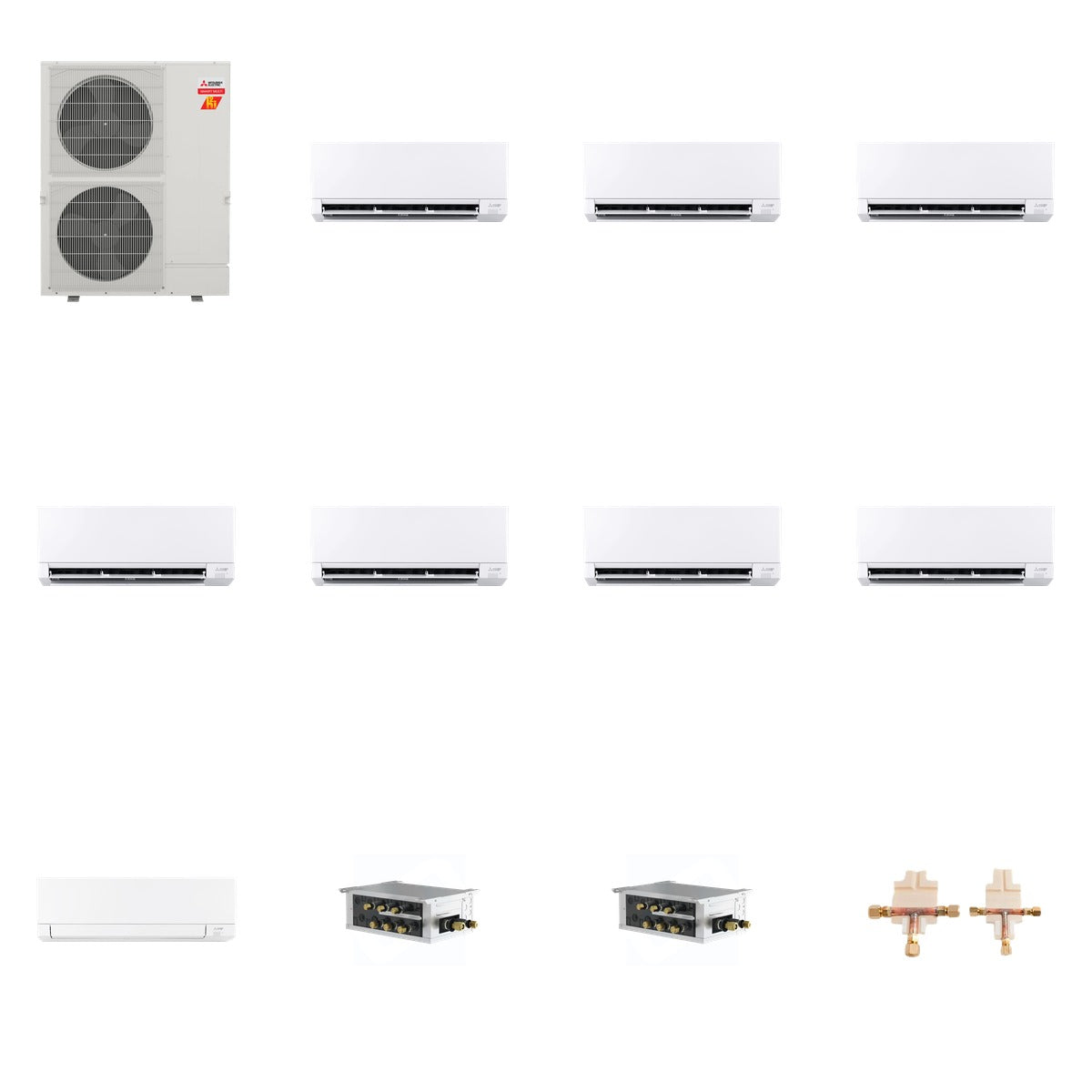

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - 6k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX09NL - 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - 12k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX18NL - 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 422.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2: Up to 28.4 (MSZ-GX series)
• Voltage: 208/230 Volts
• Number of Zones: Up to 8 (MXZ-SM60NL)
• Sound Level: As low as 19 dB(A) (MSZ-GX series)
• Refrigerant: R454B
• Dimensions (MXZ-SM60NL): 41-11/32 in W x 13 in D x 52-11/16 in H

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The outdoor unit connects seamlessly with the included indoor air handlers, allowing for customized climate control in different areas. Ideal for both new installations and upgrades, these components work together to deliver superior performance and energy efficiency.
