Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+6K+9K+9K+15K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting multiple indoor units for customized comfort across various spaces. Paired with the MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX15NL wall-mounted air handlers, this bundle ensures optimal performance in both residential and commercial environments. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances system efficiency. Together, these products provide a complete solution for versatile climate control.

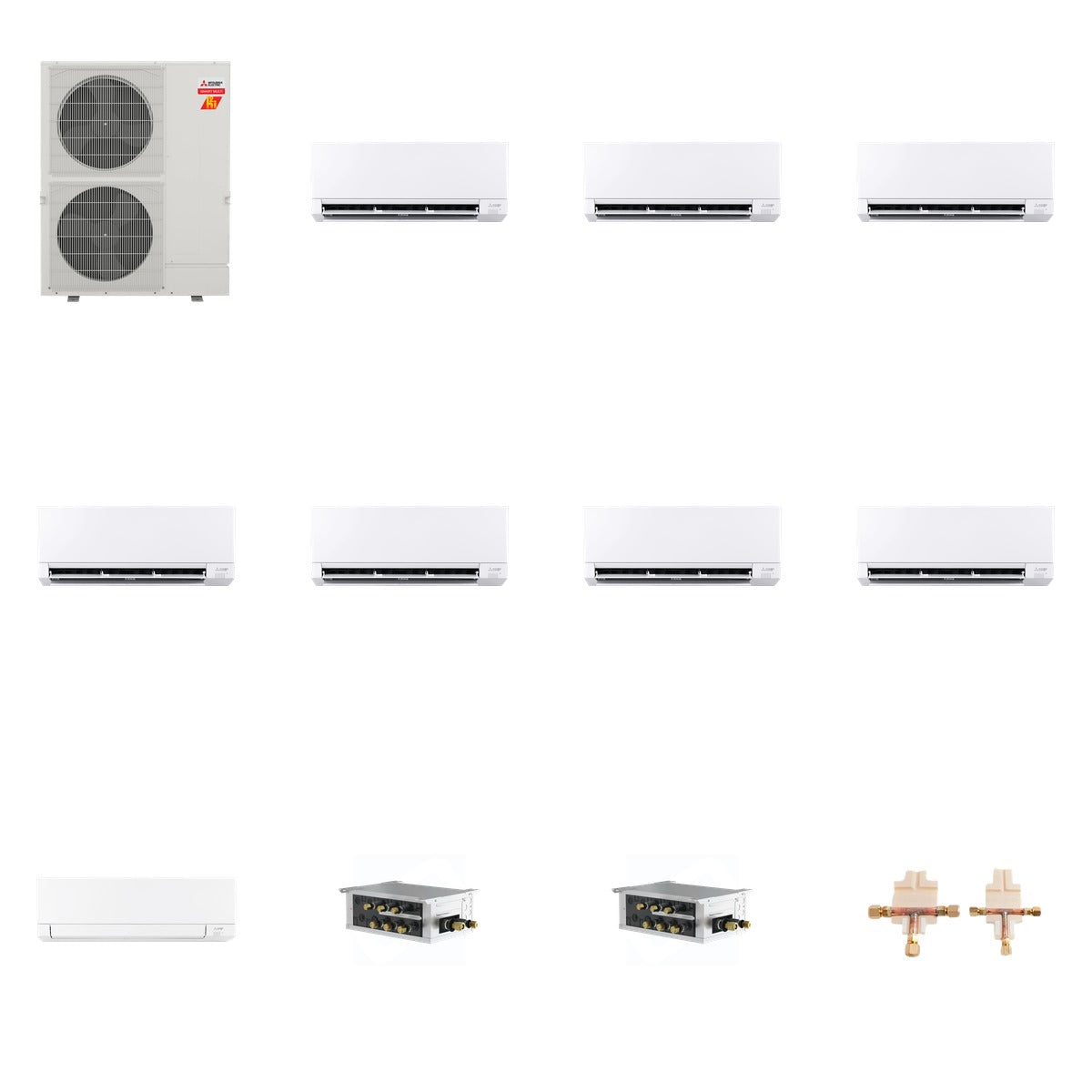

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 416.1 lb (Mitsubishi 225 lb + Mitsubishi 110 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Cooling BTU: 6,000 - 15,000 BTU (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX15NL)
• SEER2 Rating: Up to 28.4 (MSZ-GX Series)
• Voltage: 208/230 Volts
• Refrigerant Type: R-454B
• Noise Level: As low as 19 dB(A) (MSZ-GX Series)
• Branch Box Ports: 3 and 5 (PAC-LMA30BC, PAC-LMA50BC)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for both residential and commercial spaces. The outdoor unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across multiple indoor units.
