Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+6K+15K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. Paired with the MSZ-GX06NL and MSZ-GX15NL wall-mounted air handlers, this bundle provides versatile heating and cooling solutions for various room sizes. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit simplifies installation and enhances system performance. Together, these components deliver a reliable and efficient HVAC solution for both residential and commercial applications.

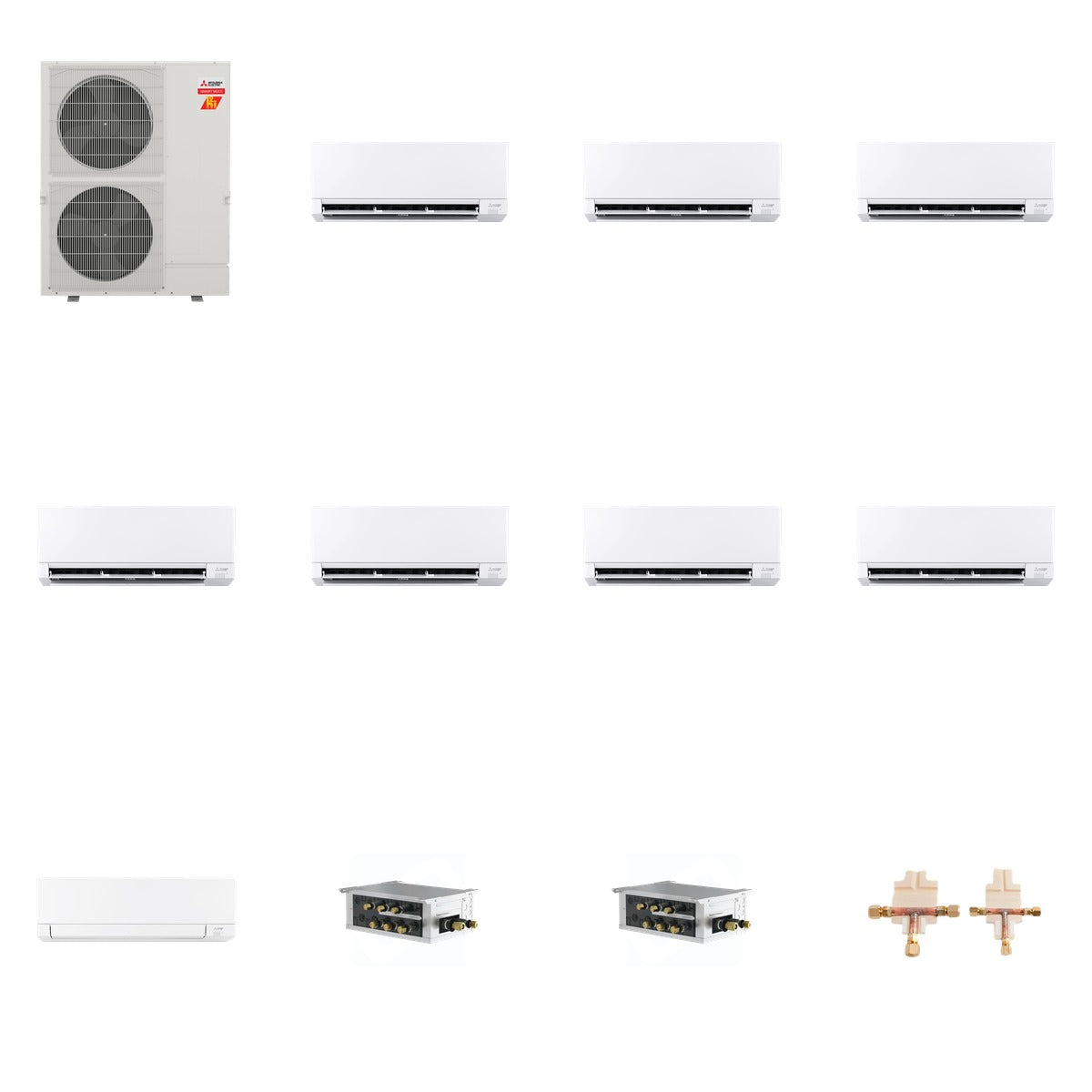

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - 6k BTU Heat Pump Wall Mount Air Handler (Qty x7)
• MITSUBISHI ELECTRIC MSZ-GX15NL - 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 416.1 lb (Mitsubishi 225 lb + Mitsubishi 154 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 6,000 BTU (MSZ-GX06NL), 15,000 BTU (MSZ-GX15NL)
• SEER2 Rating: Up to 28.4 (MSZ-GX06NL)
• Voltage: 208/230 Volts
• Material: Copper (MSDD-50AR2-E)
• Sound Level: As low as 19 dB(A) (MSZ-GX06NL)
• Dimensions: 41-11/32 in W x 13 in D x 52-11/16 in H (MXZ-SM60NL)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The outdoor unit connects seamlessly with various indoor air handlers, while the branch boxes and distribution kit ensure optimal refrigerant flow. Ideal for installations requiring flexibility and performance, this system is compatible with R454B refrigerant and offers advanced control options through built-in Wi-Fi.
