Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+18K+24K

Description

This comprehensive bundle includes essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the powerhouse, capable of connecting to multiple indoor units for customized heating and cooling. Complementing this unit are the MSZ-GX06NL, MSZ-GX18NL, and MSZ-GX24NL wall-mounted air handlers, which provide efficient climate control for various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant flow to the indoor units, while the MSDD-50AR2-E branch pipe distribution kit enhances system performance. Together, these products deliver a complete solution for both residential and commercial environments.

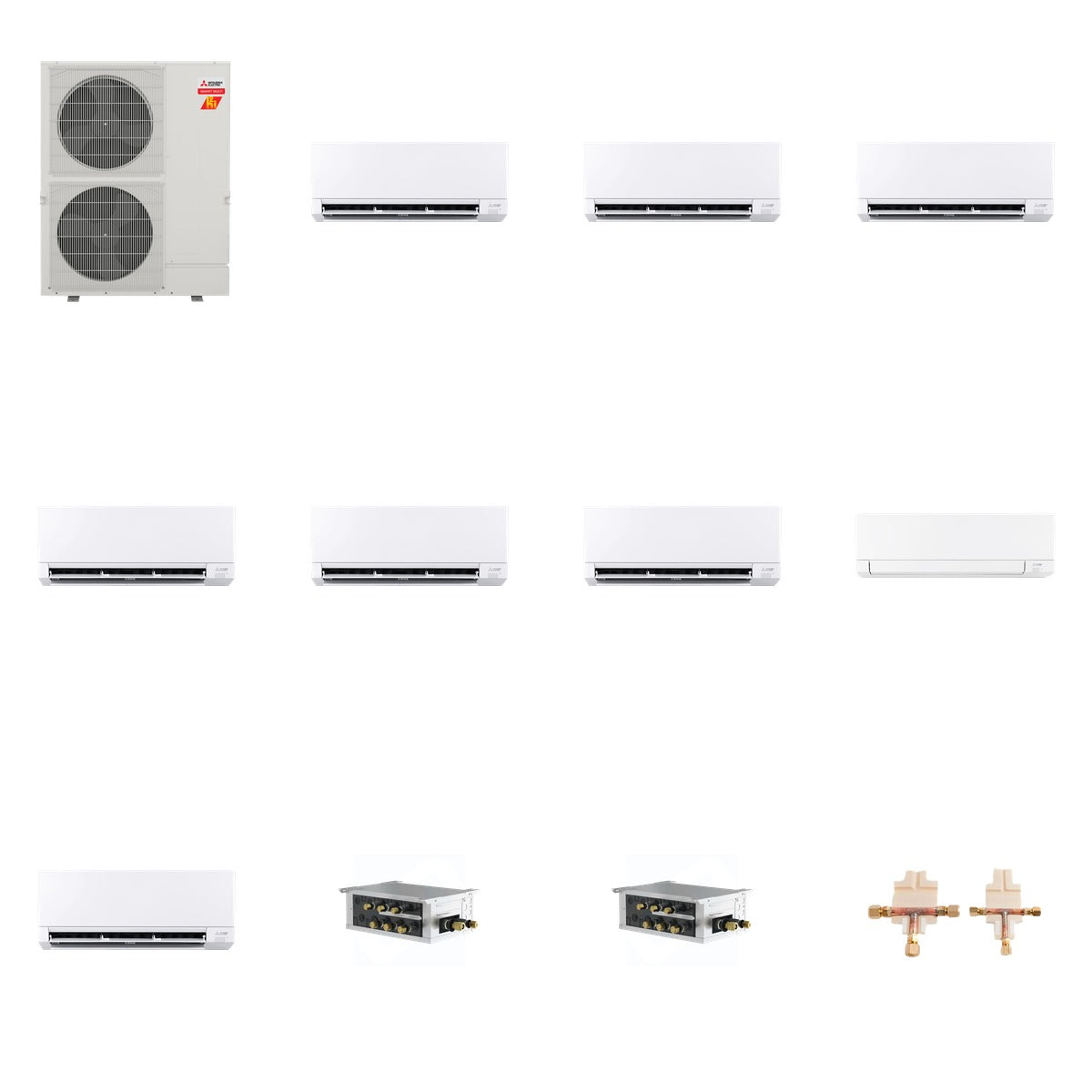

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - 6k BTU Heat Pump Wall Mount Air Handler (Qty x6)
• MITSUBISHI ELECTRIC MSZ-GX18NL - 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX24NL - 24k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 428.1 lb (Mitsubishi 225 lb + Mitsubishi 132 lb + Mitsubishi 28 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Wall Mount Air Handlers: 6,000 BTU (MSZ-GX06NL), 18,000 BTU (MSZ-GX18NL), 24,000 BTU (MSZ-GX24NL)
• SEER2 Ratings: Up to 28.4 (MSZ-GX series)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Sound Level: As low as 19 dB(A) (MSZ-GX series)
• Dimensions: Varies by unit

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial applications. The outdoor unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes and distribution kit ensure optimal refrigerant flow and system performance.
