Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+18K+18K

Description

This comprehensive HVAC bundle features essential components designed to work seamlessly together for optimal heating and cooling performance in multi-zone systems. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, efficiently connecting to multiple indoor units, including the MSZ-GX06NL and MSZ-GX18NL wall-mounted air handlers. The included PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate refrigerant flow management, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced refrigerant distribution. This bundle is ideal for both residential and commercial applications, providing flexibility and efficiency for diverse heating and cooling needs.

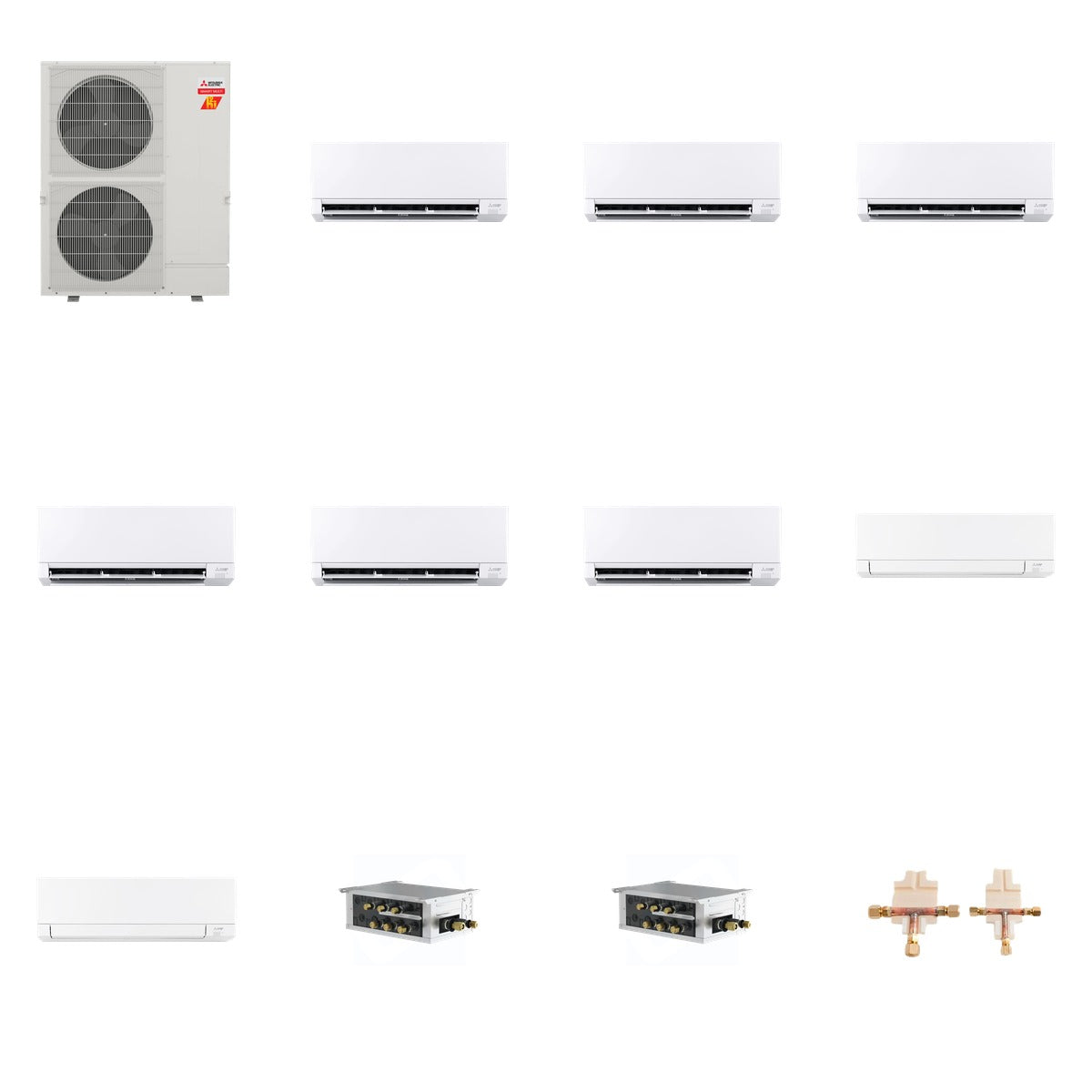

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x6)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 428.1 lb (Mitsubishi 225 lb + Mitsubishi 132 lb + Mitsubishi 56 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-GX06NL: 6,000 BTU, SEER2 up to 28.4, 208/230V, wall-mounted
• MSZ-GX18NL: 18,000 BTU, SEER2 22.5, 208/230V, wall-mounted
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ model
• PAC-LMA30BC: 3 ports, 208/230V, supports R454B refrigerant
• MSDD-50AR2-E: Flare connection, oxygen-free copper construction

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The outdoor unit connects to various indoor air handlers, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature management. Compatible with R454B refrigerant, this system is ideal for modern energy-efficient installations.
