Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+15K+15K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor air handlers, including the MSZ-GX06NL and MSZ-GX15NL, which provide tailored comfort for various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures seamless installation and performance. Together, these products offer a complete solution for both residential and commercial environments, ensuring energy efficiency and comfort all year round.

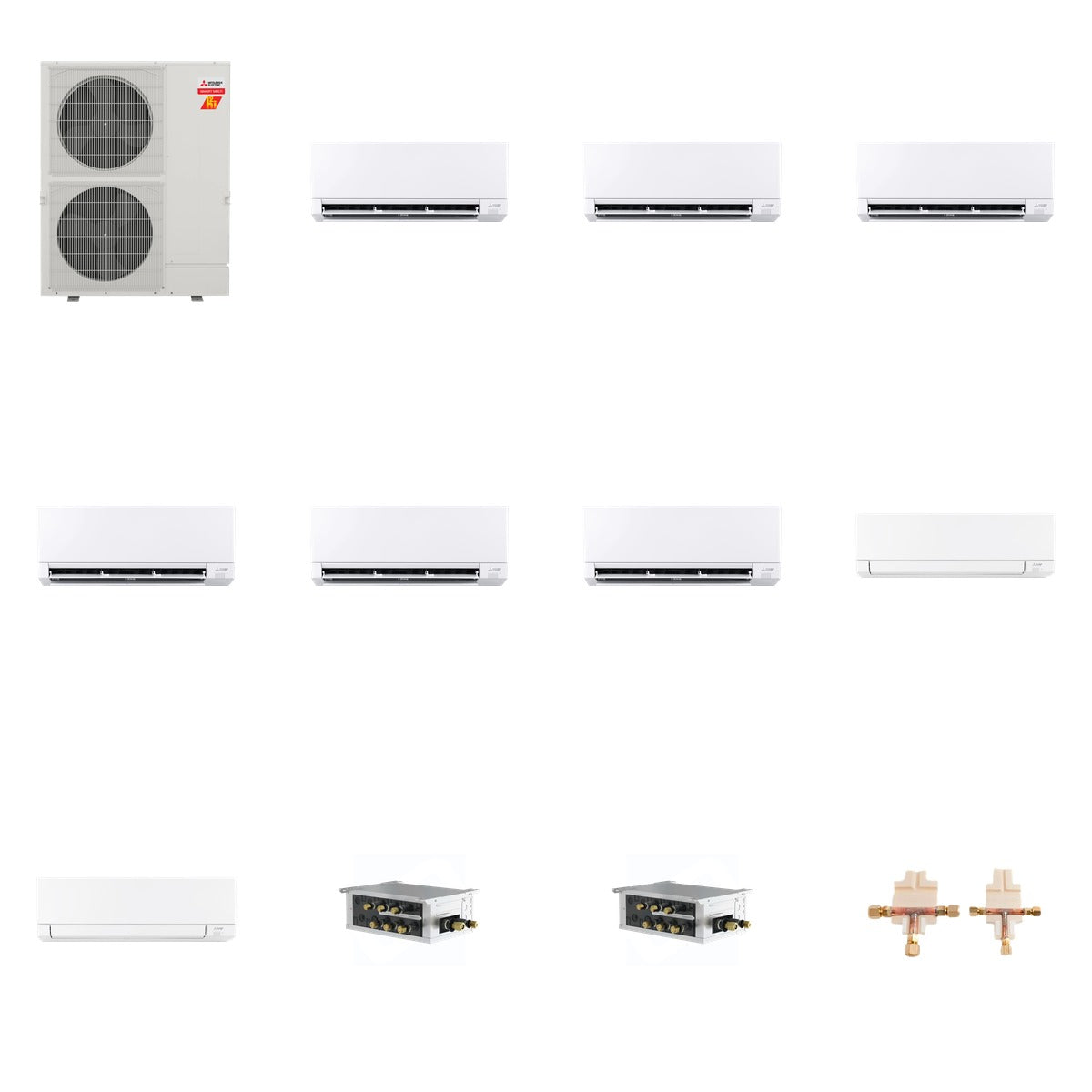

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x6)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 416.1 lb (Mitsubishi 225 lb + Mitsubishi 132 lb + Mitsubishi 44 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 6,000 BTU (MSZ-GX06NL), 15,000 BTU (MSZ-GX15NL)
• SEER2: Up to 28.4 (MSZ-GX06NL)
• Voltage: 208/230 Volts
• Number of Zones: Up to 8 (MXZ-SM60NL)
• Sound Level: As low as 19 dB(A) (MSZ-GX06NL)
• Material: Copper with thermal insulation (MSDD-50AR2-E)

Use & Compatibility

This bundle is designed for multi-zone HVAC systems, ideal for both residential and commercial applications. The MXZ-SM60NL outdoor unit connects seamlessly with the MSZ-GX series indoor units, while the branch boxes and distribution kit enhance refrigerant flow and installation efficiency. Compatible with R454B refrigerant, this setup ensures optimal performance and energy savings across various indoor environments.
