Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+12K+18K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting multiple indoor air handlers for customized comfort across various spaces. Paired with the MSZ-GX06NL, MSZ-GX12NL, and MSZ-GX18NL wall-mounted air handlers, this bundle offers a range of capacities to suit different room sizes. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit facilitates seamless installation. Together, these products deliver a reliable and energy-efficient climate control solution for both residential and commercial applications.

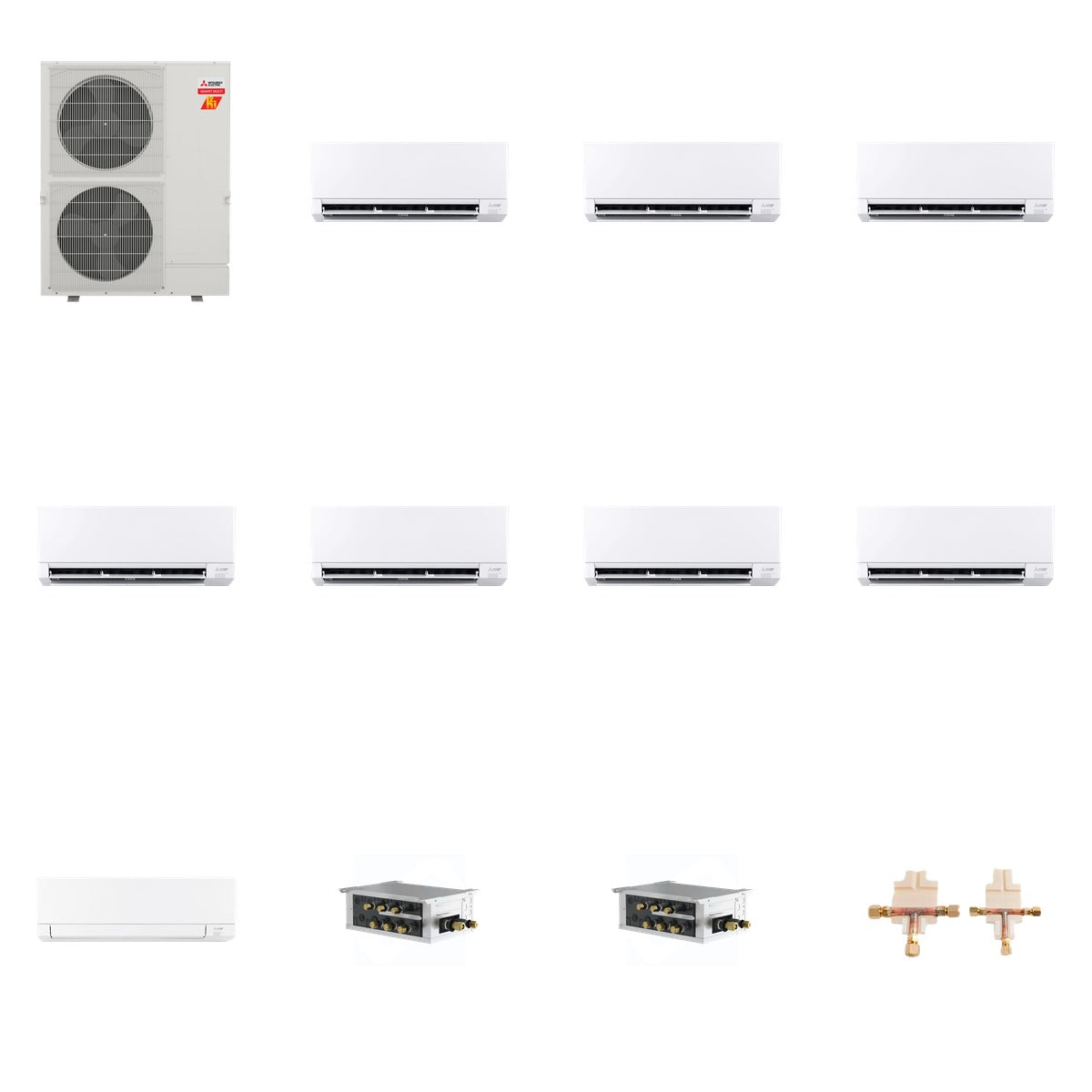

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x6)
• MITSUBISHI ELECTRIC MSZ-GX12NL - R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 422.1 lb (Mitsubishi 225 lb + Mitsubishi 132 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU/h
• Heating Capacity: Up to 66,000 BTU/h
• SEER2 Rating: Up to 28.4
• Voltage: 208/230 Volts
• Sound Level: As low as 19 dB(A)
• Material: Copper (for branch pipes), R454B refrigerant
• Dimensions (Outdoor Unit): 41-11/32 in W x 13 in D x 52-11/16 in H

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, ideal for both residential and commercial spaces. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, allowing for flexible configurations. The included branch boxes and distribution kit ensure efficient refrigerant flow, making installation straightforward and effective.
