Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+12K+12K+12K+15K

Description

This comprehensive bundle from Mitsubishi Electric includes essential components for creating an efficient multi-zone heating and cooling system. The MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. The MSZ-GX06NL, MSZ-GX12NL, and MSZ-GX15NL wall-mounted air handlers provide flexible installation options and advanced features such as built-in Wi-Fi and energy-saving modes. To manage refrigerant flow, the PAC-LMA50BC and PAC-LMA30BC branch boxes are included, ensuring optimal performance across all connected units. The MSDD-50AR2-E branch pipe distribution kit completes the setup, facilitating seamless refrigerant distribution. This bundle is ideal for both residential and commercial applications, ensuring comfort and efficiency in any setting.

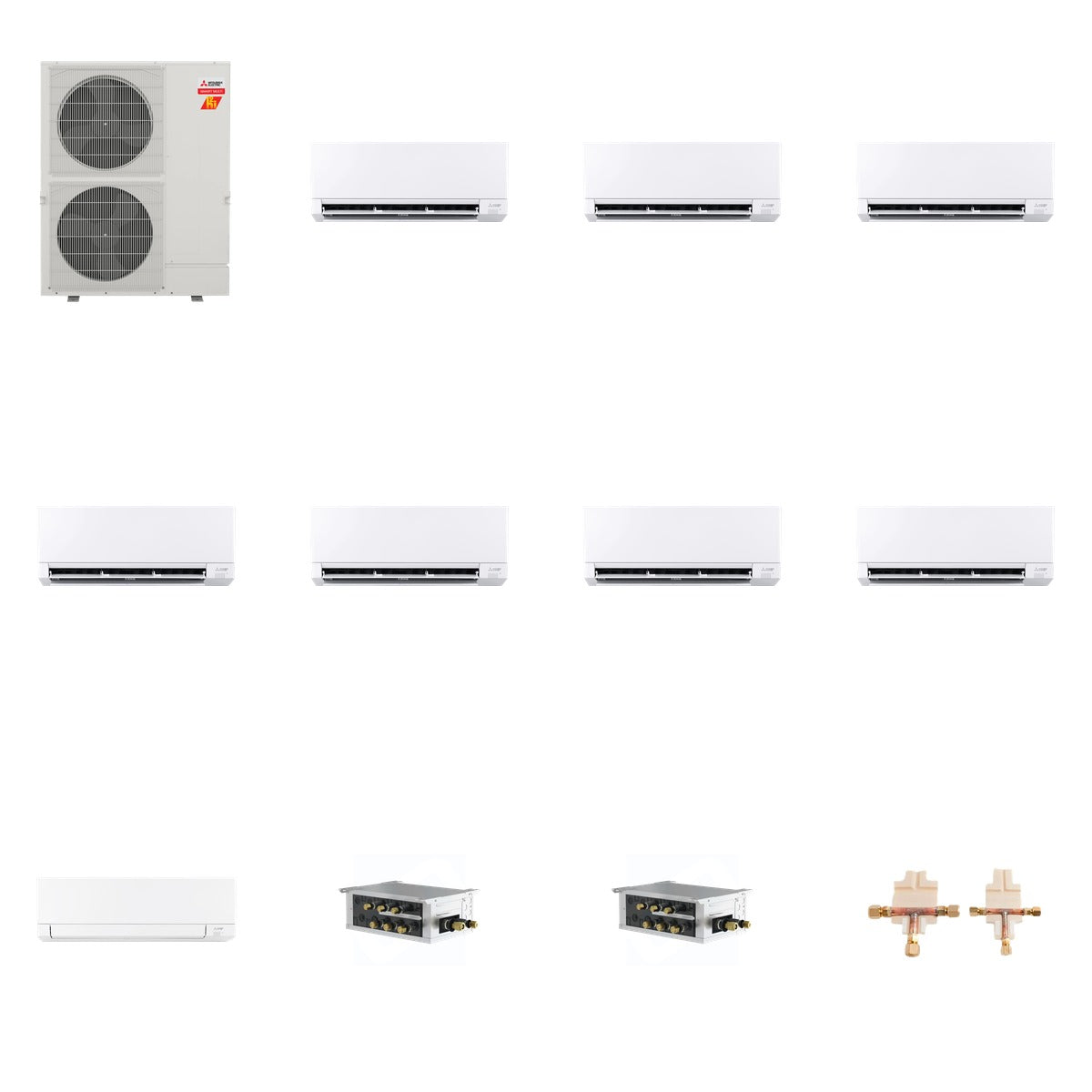

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - 6k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX12NL - 12k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 416.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 60,000 BTU/h (MXZ-SM60NL)
• Heating Capacity: Up to 66,000 BTU/h (MXZ-SM60NL)
• Indoor Unit Cooling BTU: 6,000 (MSZ-GX06NL), 12,000 (MSZ-GX12NL), 15,000 (MSZ-GX15NL)
• SEER2: Up to 28.4 (MSZ-GX series)
• Voltage: 208/230 V (All units)
• Sound Level: As low as 19 dB(A) (MSZ-GX series)
• Refrigerant: R454B (All units)
• Branch Box Ports: 3 and 5 (PAC-LMA30BC and PAC-LMA50BC)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, making it suitable for both residential and commercial applications. The outdoor unit connects seamlessly to the included wall-mounted air handlers, allowing for customizable heating and cooling solutions. The branch boxes and distribution kit ensure efficient refrigerant management, enhancing overall system performance.
