Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+9K+9K+9K+9K

Description

This comprehensive HVAC bundle features essential components designed to work seamlessly together for optimal heating and cooling performance in multi-zone systems. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, providing robust heating and cooling capabilities with a 60,000 BTU capacity. Paired with eight MSZ-FX09NL wall-mounted air handlers, this setup ensures efficient climate control across multiple rooms. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate refrigerant flow management, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced refrigerant distribution. Together, these components create a reliable and efficient HVAC solution for both residential and commercial applications.

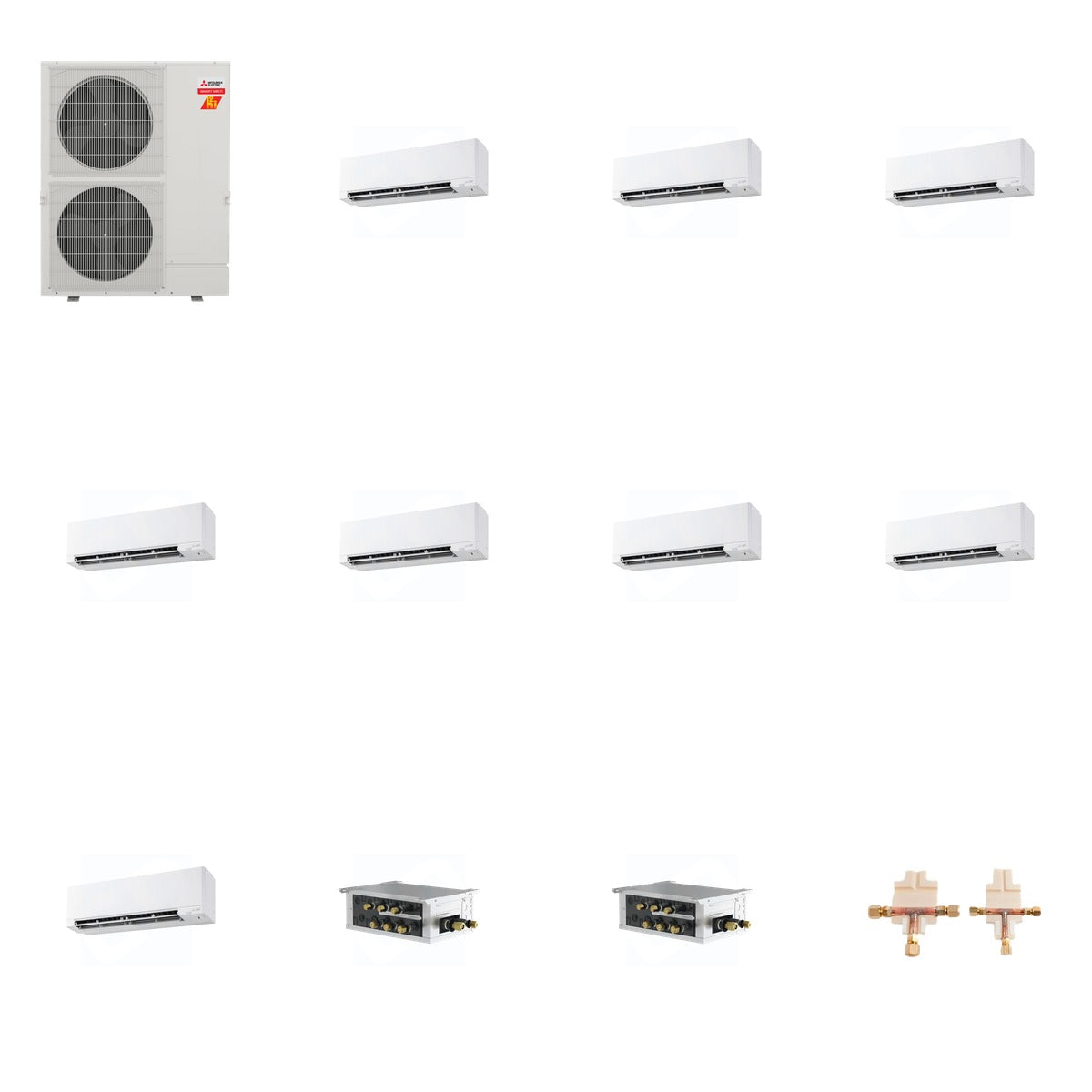

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x8)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 531.3 lb (Mitsubishi 225 lb + Mitsubishi 291.2 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 9,000 BTU (MSZ-FX09NL)
• Number of Zones: 8 (MXZ-SM60NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (all components)
• Material: Copper (MSDD-50AR2-E)
• Dimensions: 41-11/32 in W x 13 in D x 52-11/16 in H (MXZ-SM60NL)
• Sound Level: As low as 58 dB(A) (MXZ-SM60NL)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, making it ideal for both residential and commercial applications. The MXZ-SM60NL outdoor unit is compatible with various indoor units, while the included branch boxes and distribution kit ensure efficient refrigerant management and distribution. Perfect for creating customized heating and cooling solutions across multiple spaces.
