Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+9K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, providing up to 60,000 BTU of cooling and 66,000 BTU of heating capacity. Paired with seven MSZ-FX09NL and one MSZ-FX15NL wall-mounted units, this setup ensures optimal comfort across various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution to multiple indoor units, while the MSDD-50AR2-E branch pipe kit enhances system performance with its high-quality construction. Together, these components deliver a robust and flexible solution for both residential and commercial applications.

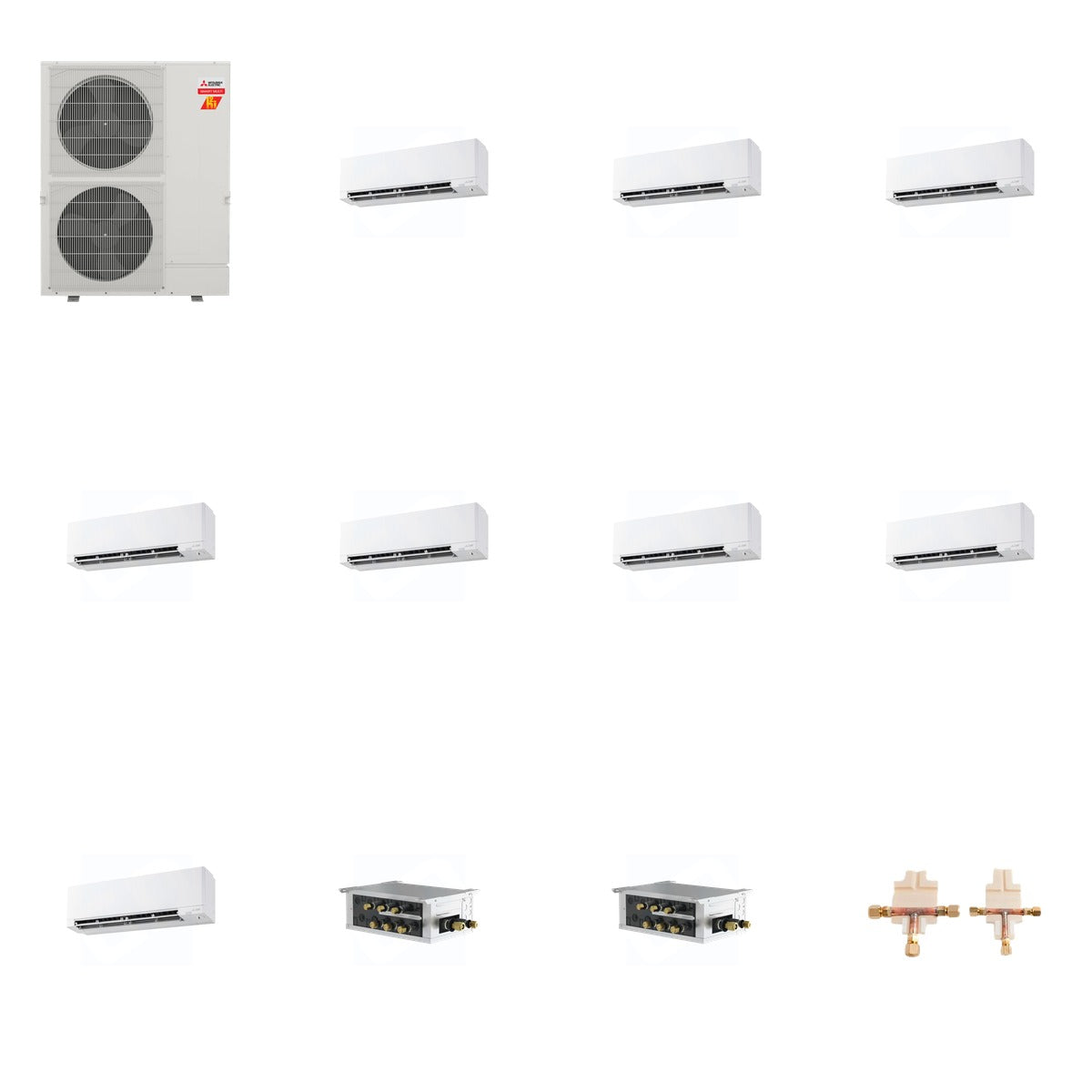

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x7)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 531.3 lb (Mitsubishi 225 lb + Mitsubishi 254.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU cooling, 66,000 BTU heating, SEER2 up to 23, dimensions 41-11/32" W x 13" D x 52-11/16" H
• MSZ-FX09NL: 9,000 BTU cooling, 12,000 BTU heating, dimensions 39.27" W x 9.75" D x 12" H
• MSZ-FX15NL: 15,000 BTU cooling, 18,000 BTU heating, dimensions 39-9/32" W x 9-3/4" D x 12" H
• PAC-LMA50BC: 5 ports, voltage 208/230V, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• PAC-LMA30BC: 3 ports, voltage 208/230V, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling applications, making it suitable for both residential and commercial systems. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, ensuring efficient and reliable performance across various environments.
